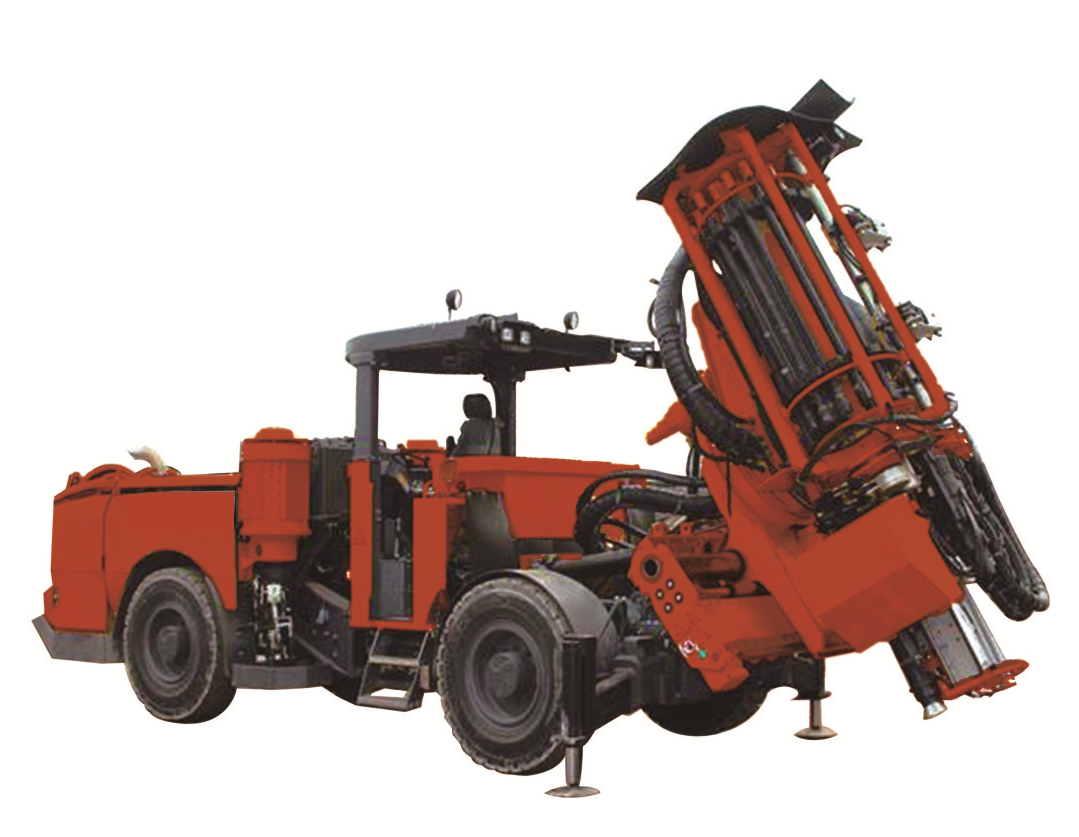

DL-4(for Mining)
DL-4(for Mining)
ProjectUnitParameter
Overall Dimension(mm)9905*1990*3580
Application Size(mm)5940*5020
Drilling Depth(m)40
Drilling Rod Capacity20+1
Drilling Speed(m/min)0.8-2
Main Motor Power55KW
Hydraulic Oil Tank(L)160
Operating Weight(kg)16500
Travelling Speed(km/h)>10
Gradebility(%)25



Drilling Arm ModelHC109
Arm Length(mm)1220/1520/1830



Steering41
Diesel Engine Power(kw)58/22
Tyre Size12xR20
Water Flow speed (L/Min)65
Water Flow Pressure(Mpa)0.8-1.2
