Drill jumbos

/Products/Drilling/Drill jumbos

Drill jumbos

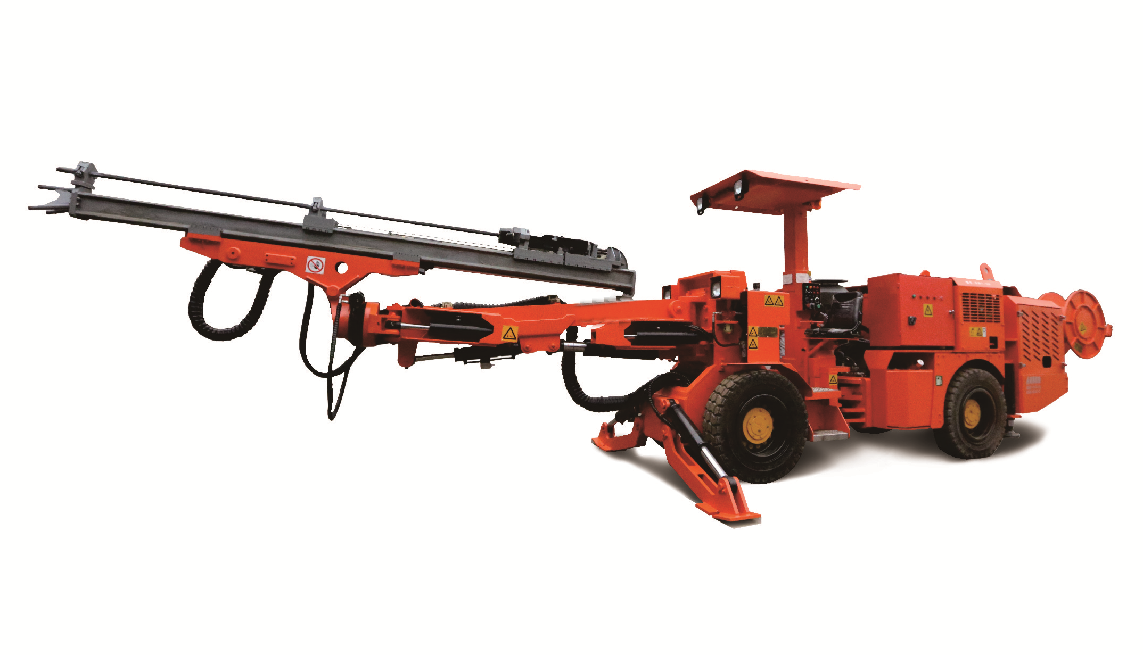

DJW1-24E

REQUEST A QUOTE

You have choose: Drill jumbos - DJW1-24E

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
DJW1-24E
DJW1-24E
ProjectUnitParameter
Overall Dimension(mm)11303*1420*2127
Application Size(mm)2500*2500-5200*4370
Drilling Depth(mm)2100/2795


Drilling Speed(m/min)0.8-2
Main Motor Power37KW
Hydraulic Oil Tank(L)120
Operating Weight(kg)11000
Travelling Speed(km/h)>14
Gradebility(%)15



Drilling Arm ModelHYD200
Arm Length(mm)2475/3090



Steering40
Diesel Engine Power(kw)64
Tyre Size8.0xR20
Water Flow speed (L/Min)35
Water Flow Pressure(Mpa)0.8-1.2
