Drill jumbos

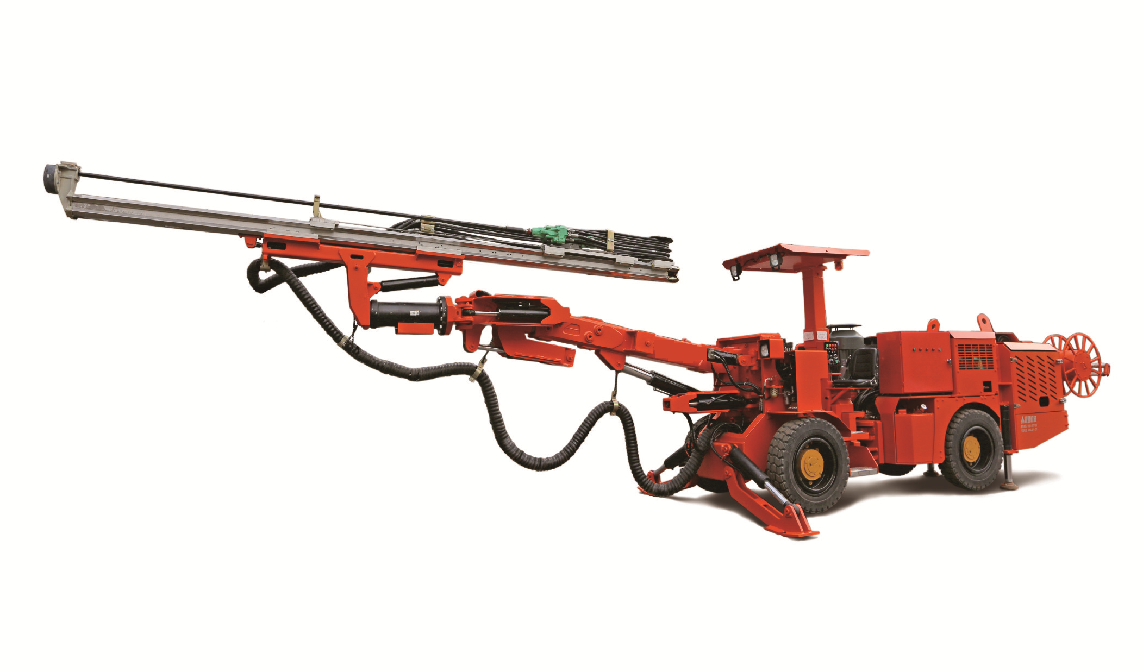

DJW1-31E

REQUEST A QUOTE

You have choose: Drill jumbos - DJW1-31E

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
DJW1-31E
DJW1-31E
ProjectUnitParameter
Overall Dimension(mm)11972*1685*2727
Application Size(mm)3500*3500-6600*6200
Drilling Depth(mm)2795/3440/4000


Drilling Speed(m/min)0.8-2
Main Motor Power55KW
Hydraulic Oil Tank(L)120
Operating Weight(kg)11800
Travelling Speed(km/h)>6.5
Gradebility(%)15



Drilling Arm ModelHC50/HYD300
Arm Length(mm)2475/3090/4000



Steering40
Diesel Engine Power(kw)64
Tyre Size8.0xR20
Water Flow speed (L/Min)35
Water Flow Pressure(Mpa)0.8-1.2
