Drill jumbos

/Products/Drilling/Drill jumbos

Drill jumbos

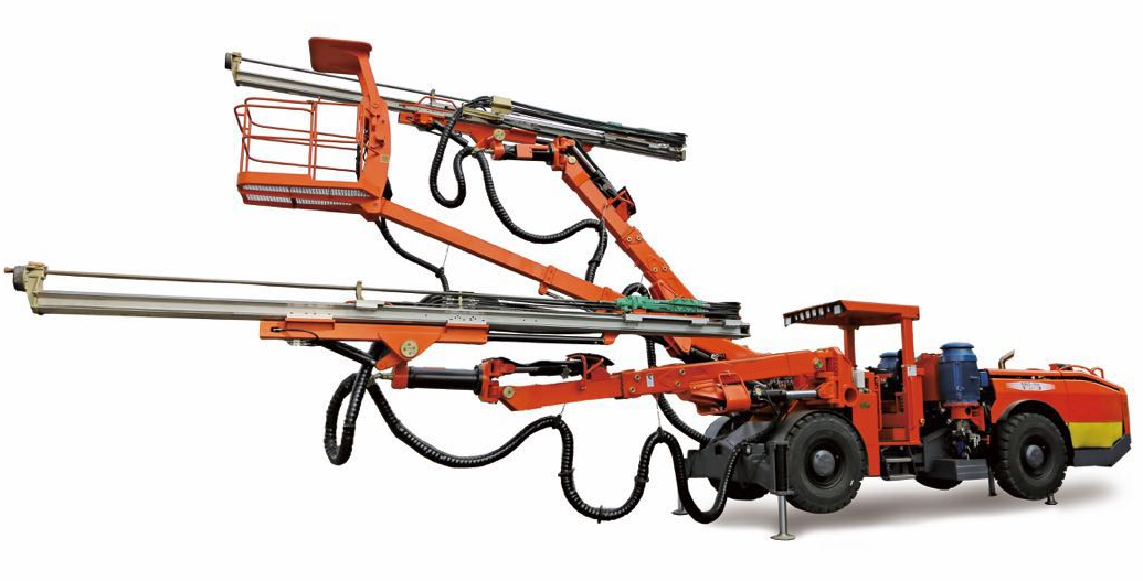

DJW2-100

REQUEST A QUOTE

You have choose: Drill jumbos - DJW2-100

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
DJW2-100
DJW2-100
ProjectUnitParameter
Overall Dimension(mm)15829*2530*3090
Application Size(mm)13730*9200
Drilling Depth(mm)3405/4015/4625


Drilling Speed(m/min)0.8-2
Main Motor Power2*75KW
Hydraulic Oil Tank(L)300
Operating Weight(kg)28000
Travelling Speed(km/h)15
Gradebility(%)15



Drilling Arm ModelHC109/HC110
Arm Length(mm)3700/4015/4625



Steering38
Diesel Engine Power(kw)64
Tyre Size14xR24
Water Flow speed (L/Min)100
Water Flow Pressure(Mpa)0.2-0.8
