Sweeper truck
Sweeper truck

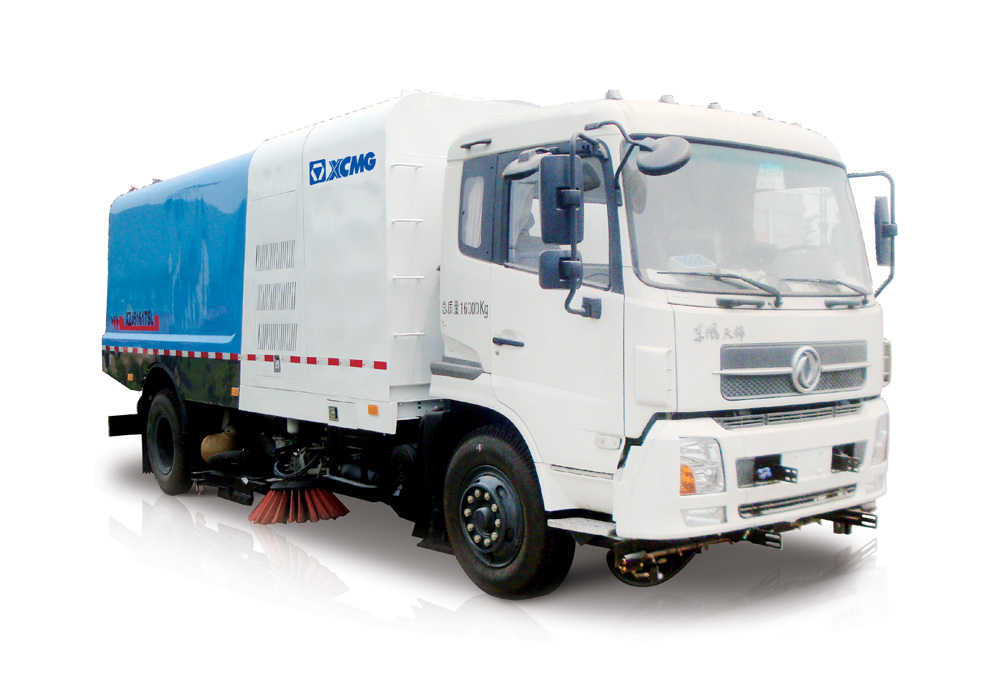

XZJ5161TSLD5
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | parameter |
| Vehicle model | - | XZJ5161TSLD5 |
| Chassis models | - | DFL1160BX1V |
| engine Model | - | ISDe 180 50ISDe 210 50 |
| wheel base | (mm) | 5000 |
| maximum total weight | (Kg) | 15800 |
| Overall dimensions(L*W*H) | (mm) | 8500*2475*3245 |
| Curb weight | (Kg) | 11830 |
| Auxiliary engine type | - | QSBC160-30（The Ⅲ emission standards） EQB160-20（The Ⅱ emission standards） |
| Auxiliary engine power | (Kw) | 118 |
| Container capacity | (m³) | 9 |
| Tank Volume | (m³) | 5 |
| The lifting Angle | (°) | ≥45 |
| Max. working width | (m) | 3.5 |
| Operating speed | (km/h) | 42824 |
| Cleaning efficiency | (%) | ≥95 |
| max. suction granularity | (mm) | 120 |
| Wet to a single operation time | (h) | ≥6 |
| Model of pump | - | 66LP |
| System pressure | (Mpa) | 10 |
| flux | (l/min) | 41 |
| Chuck width (unfold) | (mm) | 3000 |
