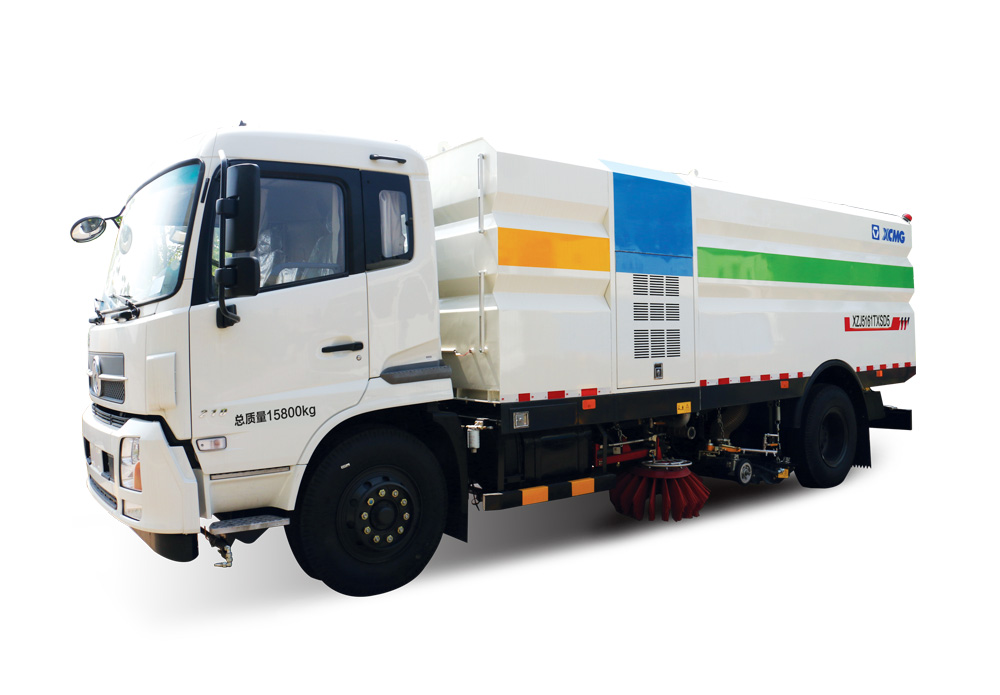

Sweeper truck
Sweeper truck
XZJ5161TXSD5
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | parameter |
| Vehicle model | - | XZJ5161TXSD5 |
| Chassis models | - | EQ1160GD5NJ(The Ⅴ emission standards） |
| Engine Model | - | YC4G180 50 |
| Overall dimensions(L*W*H) | (mm) | 9265×2470×3045 |
| Curb weight | (kg) | 13000 |
| Operating weight | (kg) | 16000 |
| Clean sweep width | (m) | 3.5 |
| Wash the sweep speed | (Km/h) | 3~20 |
| Cleaning width | (m) | 3.5 |
| Sweeping Speed | (Km/h) | 3~20 |
| The cleaning water pressure rating | (MPa) | 10 |
| Cleaning water rated flow | (L/min) | 137 |
| The Max cleaning Capacity | (㎡/h) | 70000 |
| Working Efficiency | (%) | ≥95 |
| Discharging Angle | (°) | ≥48 |
| Clear water tank capacity | (m³) | 8.8 |
| Garbage Tank capacity | (m³) | 7 |
