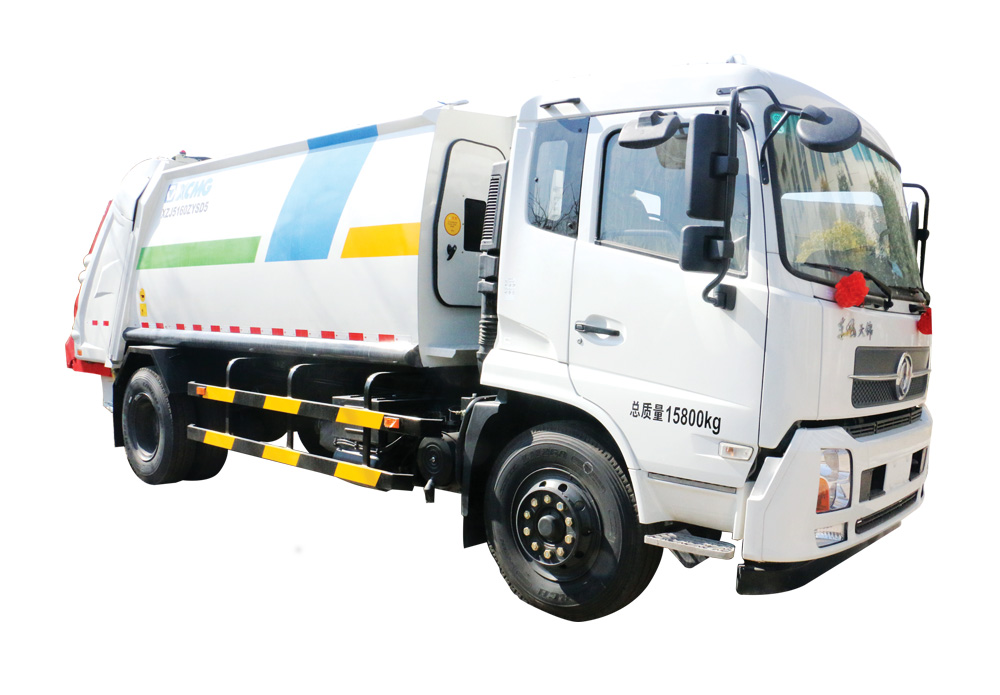

Garbage copressing truck
Garbage copressing truck
XZJ5161ZYSD5
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | parameter |
| Vehicle parameters | - | EQ1160GD5NJ |
| Chassis models | ||
| Engine type | - | YC6J190N-52，YC6J210N-52，YC6G230N-50，NQ200CN5，B6.7GE5 190，B6.7GE5 210 |
| tonnage | (T) | 8 |
| Length | (mm) | 8830（Great device），9230（Rolling barrel bucket） |
| Wideth | (mm) | 2500 |
| Height | (mm) | 2990 |
| Approach Angle/Angle of departure | (°) | 18/20 |
| Maximum weight | (kg) | 16000 |
| Vehicle servicing weight | (kg) | 8600（Great device），8430（Rolling barrel bucket） |
| Rated load | (kg) | 7205（Great device），7375（Rolling barrel bucket） |
| Carriage Volume | (m³) | 12.5 |
| Fill in the feeder volume | (m³) | 1.75 |
| Drain tank capacity | (L) | 350 |
| Deputy drain tank capacity | (L) | 228 |
| Bucket Capacity | (L) | 1400 |
| ground clearance | (mm) | 1040 |
| Wideth | (mm) | 1680 |
| Height | (mm) | 900 |
| The cycle time of loading | (s) | 16～18 |
| The tailgate ascending Angle | (°) | ～95° |
| Rated hydraulic pressure | (MPa) | 19.6 |
| Discharging time | (s) | ≤25 |
| The double barrel dumping Angle | (°) | ≥45° |
| Loader lift time | (s) | 13 |
| Max.shift force | (kN) | 226 |
| Max.broken compressive force | (kN) | 136 |
| Compression ratio | - | 1:3 |
| Living garbage compression density | (T/m³) | 0.7~0.8 |
