Garbage copressing truck
Garbage copressing truck

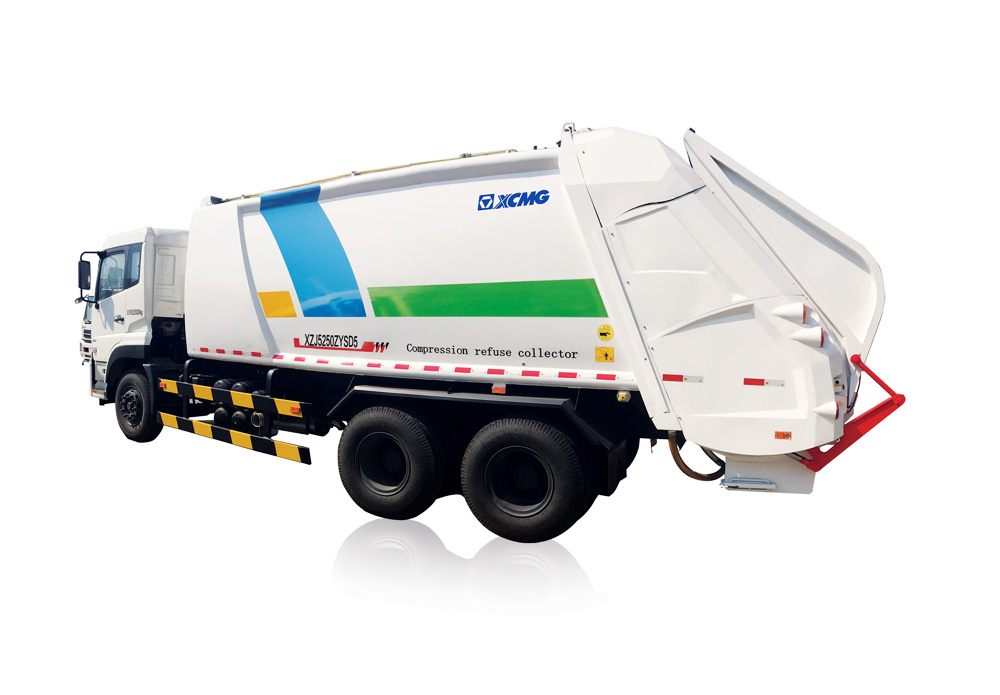

XZJ5250ZYSD5
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | parameter |
| Vehicle parameters | - | DFL1250A13 |
| Chassis models | ||
| Engine type | - | ISD245 50，ISD270 50 |
| tonnage | (T) | 12 |
| Length | (mm) | 10115 |
| Wideth | (mm) | 2500 |
| Height | (mm) | 3380/3600/3690 |
| Approach Angle/Angle of departure | (°) | 18/13 |
| Maximum weight | (kg) | 25000 |
| Vehicle servicing weight | (kg) | 14570 |
| Rated load | (kg) | 10300 |
| Carriage Volume | (m³) | 19 |
| Fill in the feeder volume | (m³) | 2.6 |
| Drain tank capacity | (L) | 360 |
| Deputy drain tank capacity | (L) | 228 |
| Bucket Capacity | (L) | 1634 |
| ground clearance | (mm) | 1225 |
| Wideth | (mm) | 2000 |
| Height | (mm) | 1650 |
| The cycle time of loading | (s) | 18～20 |
| The tailgate ascending Angle | (°) | ～105° |
| Rated hydraulic pressure | (MPa) | 19.6 |
| Discharging time | (s) | ≤40 |
| The double barrel dumping Angle | (°) | ≥45° |
| Loader lift time | (s) | 14 |
| Max.shift force | (kN) | 419 |
| Max.broken compressive force | (kN) | 163 |
| Compression ratio | - | 1:3 |
| Living garbage compression density | (T/m³) | 0.7~0.8 |
