Garbage copressing truck
Garbage copressing truck

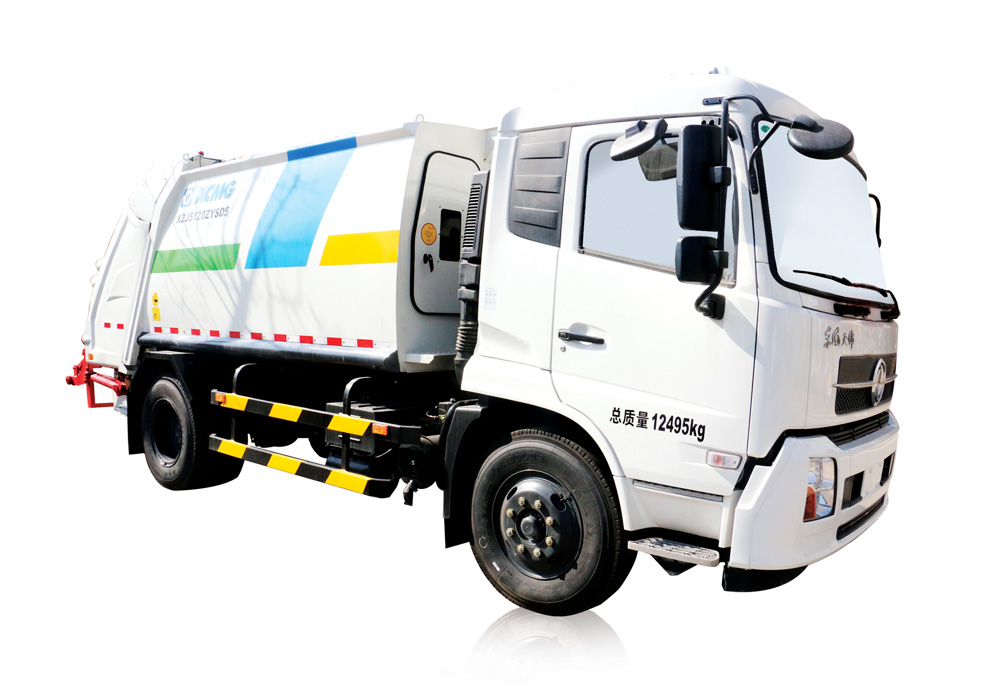

XZJ5120ZYSD5
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | parameter |
| Vehicle parameters | - | DFL1120B21 |
| Chassis models | ||
| Engine type | - | ISD180 50,ISD160 50,ISB180 50 |
| tonnage | (T) | 5 |
| Length | (mm) | 7510（Great device），7860（Rolling barrel ），7610（bucket） |
| Wideth | (mm) | 2470 |
| Height | (mm) | 2990 |
| Approach Angle/Angle of departure | (°) | 20/19 |
| Maximum weight | (kg) | 12495 |
| Vehicle servicing weight | (kg) | 7930（Great device），8295（Rolling barrel ），8120（bucket） |
| Rated load | (kg) | 4370（Great device），4005（Rolling barrel ），4190（bucket） |
| Carriage Volume | (m³) | 10 |
| Fill in the feeder volume | (m³) | 1.75 |
| Drain tank capacity | (L) | 350 |
| Deputy drain tank capacity | (L) | 228 |
| Bucket Capacity | (L) | 1400 |
| ground clearance | (mm) | 1040 |
| Wideth | (mm) | 1680 |
| Height | (mm) | 900 |
| The cycle time of loading | (s) | 16～18 |
| The tailgate ascending Angle | (°) | ～95° |
| Rated hydraulic pressure | (MPa) | 19.6 |
| Discharging time | (s) | ≤25 |
| The double barrel dumping Angle | (°) | ≥45° |
| Loader lift time | (s) | 13 |
| Max.shift force | (kN) | 226 |
| Max.broken compressive force | (kN) | 136 |
| Compression ratio | - | 1:3 |
| Living garbage compression density | (T/m³) | 0.7~0.8 |
