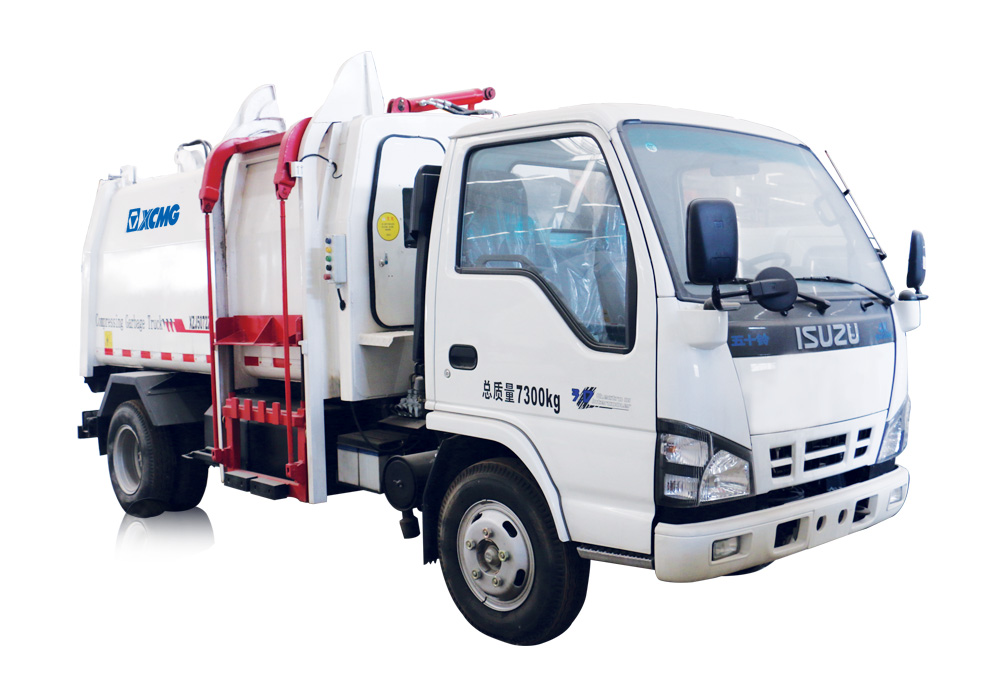

Garbage copressing truck
Garbage copressing truck
XZJ5070ZYSH5
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | parameter |
| Vehicle parameters | - | HFC1070P93K1C3ZV |
| Engine type | - | WP3Q130E50 |
| tonnage | (T) | 3 |
| Length | (mm) | 5675(Side mounted) |
| Wideth | (mm) | 1910(Side mounted) |
| Height | (mm) | 2650(Side mounted) |
| Approach Angle/Angle of departure | (°) | 27/22 |
| Maximum weight | (kg) | 7360 |
| Vehicle servicing weight | (kg) | 4440 |
| Rated load | (kg) | 2790 |
| Carriage Volume | (m³) | 5.6 |
| Drain tank capacity | (L) | 130 |
| Deputy drain tank capacity | (L) | 30 |
| Feeding time | (s) | 15~18 |
| compression time | (s) | 18～20 |
| Discharging time | (s) | ≤25 |
| The roll barrel dumping Angle | (°) | ≥45° |
| The back door opened the Angle | (°) | 90 |
| Rated hydraulic pressure | (MPa) | 16.2 |
| Max.shift force | (kN) | 102 |
| Compression ratio | - | 0.04375 |
| Living garbage compression density | (T/m³) | 0.7~0.8 |
| Operating mode | - | Manual automatic one |
| Types of control | - | Electric-hydraulic control |
| Compression way | - | Direct pressure type |
| Can be the optional standard barrel type | - | 240L（single-barrel）or 330L Standard steel drum（single-barrel） |
