Aerial working platform
Aerial working platform

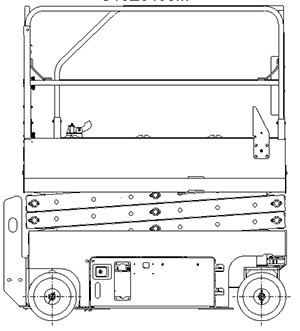

CMJC0408M
- FEATURES
- PARAMETERS
1.Power System：Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah(optional 260Ah ), 8h duration in normal operation.
2.Hydraulic System:Open type hydraulic system assembled with explosion-proof pipe unit and emergency descending switch
3.Electrical System：The application of PLC control system is more precisely for lifting and lowering, self-propelled moving, and steering control.
4.Control System:Control boards are loaded on both the platform and the chassis.
5.Safety and reliability:Equipped with imported horizontal switch, travel switch and weighing sensor, which ensures the safety of equipment and operators. The safe pole installed on the scissor part protects the workers when he maintains the machine.
6.Maintenance:The design of double revolving door is convenient to maintenance.
7.Energy-saving& environment-protecting:Electrical power, low noise and non-pollution.
Models | CMJC0408M |
|
Dimensions | ||

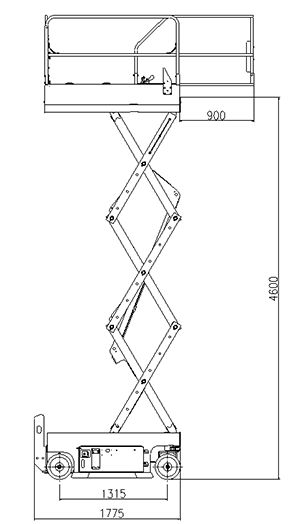

Platform height max. | 15 ft (4.6 m) | |
Working height max. | 21 ft (6.6 m) | |
Platform extended | 3 ft (0.9 m) | |
Length - stowed | 5.84 ft (1.78 m) | |
Width - stowed | 2.65 ft (0.81 m) | |
Height - stowed | 6.89 ft (2.1 m) | |
Wheelbase | 4.31 ft (1.315 m) | |
Ground Clearance | 0.23 ft in (0.07 m) | |
Platform size (L*W*H) | 5.38ft*2.5ft*3.6ft | |
Productivity | ||
Max. platform occupancy | 2(indoor) 1(outdoor) | |
Lift capacity | 617 lbs (280 kg) | |
Lift capacity - extension deck | 265 lbs (120 kg) | |
Drive speed - stowed | 0~4 km/h | |
Drive speed - raised | 0~0.8 km/h | |
Gradeability | 30% | |
Turning radius - inside | 0.88 ft (0.27 m) | |
Turning radius - outside | 5.34ft (1.63 m) | |
Raise / Lower speed | 15s~20s / 28s~33s | |
Controls | Proportional | |
Drive&steer model | 2WD, front-wheel | |
Brake | 2 rear wheel | |
Tire Size/type | 305*115mm/solid | |
Power | ||
Battey | 6V*4/225Ah | |
Hydraulic system tank vol. | 18 L | |
Power unit | 24VDC ,3 KW | |
Weight | ||
Overall weight | 3573 lbs (1261 kg) | |
StandardsCompliance | CE/ISO/ADR/ARAMCO | |
