Aerial working platform
Aerial working platform

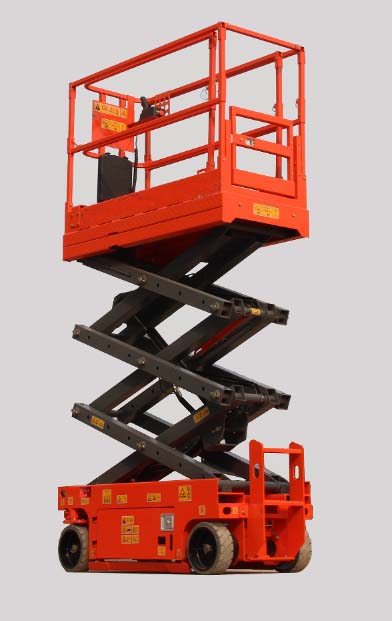

CMJC0608
- FEATURES
- PARAMETERS
1. Small turning radius: The outside turning radius of the tires is 6 ft 9 in (2.1 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 838 lbs (380 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah; 8h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
Models | CMJC0608 |
|
Dimensions | ||
| 21 ft (6.3 m) | |
Working height max. | 27 ft (8.3 m) | |
| 3 ft (0.9 m) | |
| 7 ft 8 in (2.39 m) | |
Width - stowed | 2 ft 7 in (0.81 m) | |
| 7 ft 3 in (2.22 m) | |
Height - rails folded | 6 ft (1.83 m) | |
Height - fixed rails | 7 ft 3 in (2.22 m) | |
| 6 ft (1.85 m) | |
Ground clearance | 3 in (0.1 m) | |
Platform size (L*W*H) | 7 ft 4 in*2 ft 7 in*3 ft 6 in (2.25 m*0.81 m*1.1 m) | |
Productivity | ||
Max. platform occupancy | 2 (indoor) 1 (outdoor) | |
Lift capacity | 838 lbs (380 kg) | |
Lift capacity - extension deck | 265 lbs (120 kg) | |
Drive speed - stowed | 0～2.0 mph (0~3.2 km/h) | |
Drive speed - raised | 0～0.5 mph (0~0.8 km/h) | |
Gradeability | 30% | |
Turning radius - inside | 0 ft (0 m) | |
Turning radius - outside | 6 ft 9 in (2.1 m) | |
Raise / Lower speed | 27/33 s | |
Controls | Proportional | |
Drives | Dual front wheel | |
Brakes | Dual rear wheel | |
Tire size (solid non-marking) | 15 in * 5 in (380 mm * 125 mm) | |
Power | ||
Power source | 24V DC (4*6V, 225Ah batteries) | |
Hydraulic system capacity | 4.76 gal (18 L) | |
Power | 3 KW | |
Weight | ||
Indoor & outdoor general | 3902 lbs (1770 kg) | |
Standards Compliance | CE/ ISO/ ADR/ ARAMCO | |
