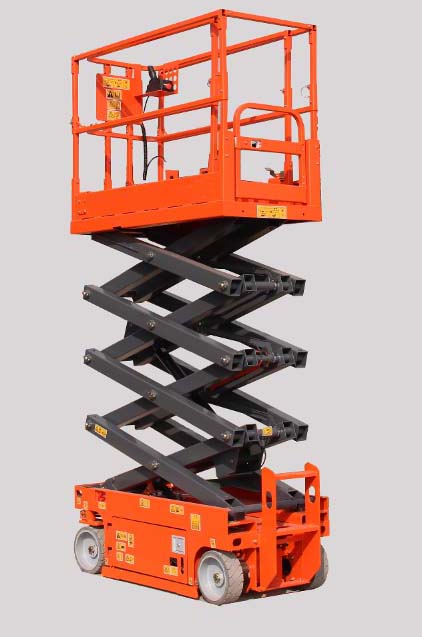

Aerial working platform

CMJC0608M

REQUEST A QUOTE

You have choose: Aerial working platform - CMJC0608M

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
CMJC0608M

1. Small turning radius: The outside turning radius of the tires is 5.34ft (1.63 m) and the inside turning radius is 0.88 ft (0.27 m)

2. Large load capacity: The maximal load capacity reaches 507 lbs (230 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).

3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah; 8h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.


Models

CMJC0608M





Dimensions

 Platform height max.

19 ft (5.8 m)

Working height max.

21 ft (7.8 m)

 Platform extended

3 ft (0.9 m)

 Length -  stowed

5.84 ft (1.78 m)

Width - stowed

2.65 ft (0.81 m)

 Height - stowed

6.92 ft (2.11 m)

 Wheelbase

4.31 ft (1.315 m)

Ground Clearance

0.23 ft in (0.07 m)

Platform size (L*W*H)

5.38ft*2.5ft*3.6ft
(
1.64 m*0.76 m*1.1 m)

Productivity

Max. platform occupancy

2(indoor)  1(outdoor)

Lift capacity

507 lbs (230 kg)

Lift capacity - extension deck

265 lbs (120 kg)

Drive speed - stowed

 0~4 km/h

Drive speed - raised

0~0.8 km/h

Gradeability

25%

Turning radius - inside

0.88 ft (0.27 m)

Turning radius - outside

5.34ft (1.63 m)

Raise / Lower speed

15s~20s / 25s~30s

Controls

Proportional

Drive&steer model

2WD, front-wheel

Brake

2 rear wheel

Tire Size/type

305*115mm/solid

Power

Battey

6V*4/225Ah

Hydraulic system tank vol.

18 L

Power unit

24VDC  ,3 KW

Weight

Overall weight

3214 lbs (1458 kg)

StandardsCompliance

CE/ISO/ADR/ARAMCO
