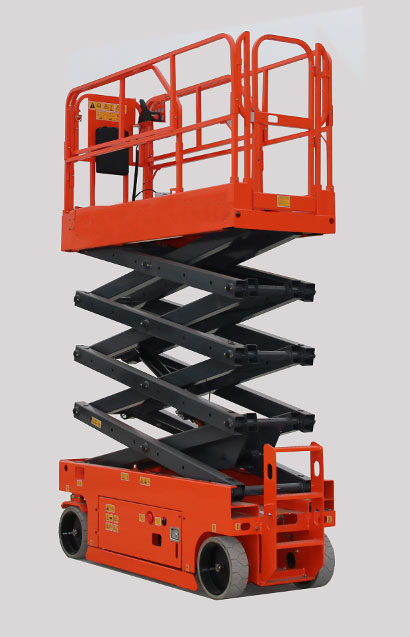

CMJC0608S
- FEATURES
- PARAMETERS
1. Small turning radius: The outside turning radius of the tires is 4 ft 9 in (1.48 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 265 lbs (230 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah; 8h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
Models | CMJC0608S |
|
Dimensions | ||
Platform height max. | 19 ft (5.8 m) | |
Working height max. | 25 ft (7.8 m) | |
Platform extended | 3 ft (0.9 m) | |
Lengt - stowed | 5 ft 8 in (1.775 m) | |
Width - stowed | 2 ft 5 in (0.76 m) | |
Height- stowed | 6 ft 8 in (2.06 m) | |
Wheelbase | 4 ft 3 in (1.315 m) | |
Ground clearance | 3 in (0.07 m) | |
Platform size(L*W*H) | 5 ft 4 in*2 ft 5 in*3 ft 6 in (1.64 m*0.76 m*1.1 m) | |
Productivity | ||
Max. platform occupancy | 2 | |
Lift capacity | 507 lbs (230 kg) | |
Lift capacity - extension deck | 265 lbs (120 kg) | |
Driving speed - stowed | 0~2.5 mph (0~4 km/h) | |
Driving speed - raised | 0~0.5 mph (0~0.8 km/h) | |
Gradeability | 30% | |
Turning radius - inside | 0 ft (0 m) | |
Turning radius - outside | 4 ft 9 in (1.48 m) | |
Raise / Lower speed | 18/ 25 s | |
Controls | Proportional | |
Drives | Dual front wheel | |
Brakes | Dual rear wheel | |
Tire size (solid non-marking) | 12 in * 5 in (305 mm * 115 mm) | |
Power | ||
Power source | 24V DC (4*6V, 225Ah batteries) | |
Hydraulic system capacity | 4.76 gal (18 L) | |
Power | 3 KW | |
Weight | ||
Indoor | 2928 lbs (1328 kg) | |
Standards Compliance | CE/ ISO/ ADR/ ARAMCO |
