Aerial working platform
Aerial working platform

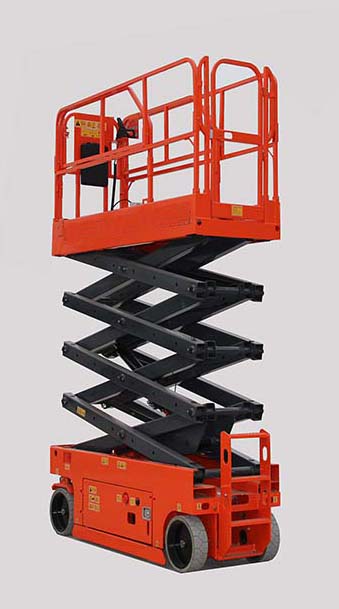

CMJC0612
- FEATURES
- PARAMETERS
1. Small turning radius: The outside turning radius of the tires is 7.7 ft (2.35 m) and the inside turning radius is 0.88 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 1212 lbs (550 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, with capacity up to 225Ah; 8h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
Models | CMJC0612 | |
Dimensions | ||
Platform height max. | 20.67 ft (6.3 m) | |
Working height max. | 27 ft (8.3 m) | |
Platform extended | 3 ft (0.9 m) | |
Length - stowed | 7.8 ft (2.39 m) | |
Width - stowed | 3.77 ft (1.15 m) | |
Height - stowed | 7.3 ft (2.22 m) | |
Wheelbase | 6.07 ft (1.85 m) | |
Ground Clearance | 0.33 ft in (0.1 m) | |
Platform size (L*W*H) | 7.4 ft*3.77 ft*3.6 ft | |
Productivity | ||
Max. platform occupancy | 2(indoor) 2(outdoor) | |
Lift capacity | 1212 lbs (550 kg) | |
Driving speed - stowed | 0~3.2 km/h | |
Driving speed - raised | 0~0.8 km/h | |
Gradeability | 25% | |
Turning radius - inside | 0 ft (0 m) | |
Turning radius - outside | 7.7 ft (2.35 m) | |
Raise / Lower speed | 25s~30s / 30s~35s | |
Controls | Proportional | |
Drive&steer model | 2WD, front-wheel | |
Brake | 2 rear wheel | |
Tire Size/type | 380*125mm/solid | |
Power | ||
Battey | 6V*4/225Ah | |
Hydraulic system tank vol. | 18 L | |
Power unit | 24VDC ,3 KW | |
Weight | ||
Overall weight | 4564 lbs (2070 kg) | |
StandardsCompliance | CE/ISO/ADR/ARAMCO | |
