Aerial working platform
Aerial working platform

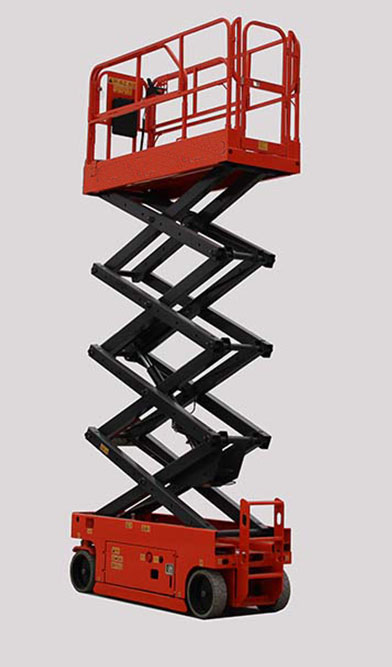

CMJC0812
- FEATURES
- PARAMETERS
1. Small turning radius: The outside turning radius of the tires is 7.7 (2.35 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 992 lbs (450kg).
3. Sufficient electric power: Trojan batteries imported from USA are used, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
Models | CMJC0812 |
|
Dimensions | ||
| 26.6 ft (8.1 m) | |
Working height max. | 33 ft (10.1 m) | |
| 3 ft (0.9 m) | |
| 7.84 ft (2.39 m) | |
Width - stowed | 3.77 ft (1.15 m) | |
| 6.43 ft (1.96 m) | |
Height - guardrail unfolded | 7.7 ft (2.35 m) | |
Height - guardrail fixed | 7.7 ft (2.35 m) | |
| 6 ft (1.85 m) | |
Ground clearance | 0.33 ft (0.1 m) | |
Platform size (L*W*H) | 7.4 ft * 3.77 ft * 3.6 ft (2.25 m*1.15 m*1.1 m) | |
Productivity | ||
Max. platform occupancy | 2 (indoor), 2(outdoor) | |
Lift capacity | 992 lbs (450kg) | |
Driving speed - stowed | 0~3.2 km/h | |
Driving speed - raised | 0~0.8 km/h | |
Gradeability | 25% | |
Turning radius - inside | 0 ft (0 m) | |
Turning radius - outside | 7.7 ft (2.35 m) | |
Raising / Falling speed | 30s~35s /35s~40s | |
Controls | Proportional | |
Drive &steer model | 2WD, front -wheel | |
Brake | 2 rear-wheel | |
Tire | 380 mm * 125 mm/solid | |
Power | ||
Power source | 24V DC (4*6V, 225Ah batteries) | |
Hydraulic system tank vol. | 18 L | |
Power | 3 KW | |
Weight | ||
overall weight ( indoor/outdoor ) | 5490 lbs (2490 kg) | |
Standards Compliance | CE/ ISO/ ADR/ ARAMCO | |
