CMJC0818D

1. Small turning radius: The outside turning radius of the tires is 15 ft (4.6 m) and the inside turning radius is 6.9 ft (2.11 m).
2. Large load capacity: The maximal load capacity reaches
1499 lbs (680 kg) and the load capacity of the extended platform is up to 308 lbs (140 kg).
3. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
4. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
5. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
6. Easy maintenance: Dual revolving doors, easy to maintain.
7. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.

Models

CMJC0818D




Dimensions

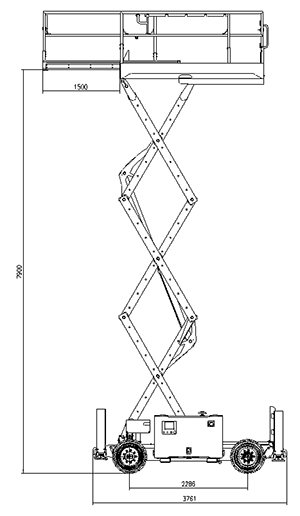

 Platform height max.

25.9 ft (7.9 m)

Working height max.

32 ft (9.9 m)

 Platform extended

4.92 ft (1.5 m)

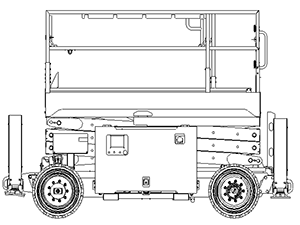

Overall Length(stowed,with outrigger/without)

12ft/10.8ft(3.77m/3.29m)

Overall width(stowed)

5.77 ft (1.76 m)

Overall height
(stowed,guardrail folded/unfolded)

6 ft (1.9 m)/8.2ft(2.50m)

 Wheelbase

7.48 ft (2.28 m)

Ground Clearance

0.72 ft (0.22 m)

Platform size (L*W*H)

9 ft*5.24ft*3.6ft
(2.8
 m*1.6 m*1.1 m)

Productivity

Max. platform occupancy

4(indoor),  4(outdoor)

Lift capacity

1499 lbs (680 kg)

Lift capacity - extension outreach

308 lbs (140 kg)

Driving speed - stowed

 0~5.6 km/h

Driving speed - raised

0~0.48 km/h

Gradeability

40%

Turning radius - inside

6.9 ft (2.11 m)

Turning radius - outside

15 ft (4.6 m)

Rising / Falling speed (without loading)

29s~39s / 26s~36s

Controls

Proportional

Drive&steer model

4WD*2WS

Hydraulic system pressure

24Mpa

Tire Size/type

26*12-16.5/solid foam

Power

Control voltage

12VDC

Hydraulic system tank vol.

85 L

Fuel tank vol.

48 L

Weight

Overall weight
(with outrigger/without)

8631 lbs (3915 kg) /
7617 lbs (3455 kg)

StandardsCompliance

CE/ISO/ADR/ARAMCO
