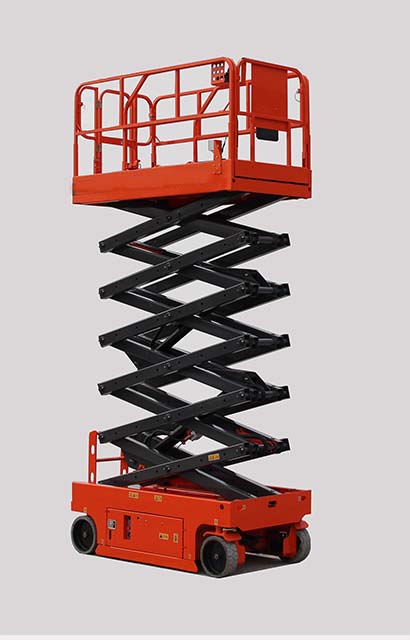

CMJC1212

1. Small turning radius: The outside turning radius of the tires is 7 ft 7 in (2.35 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, energy-saving and environmental protection.

Models

CMJC1212


hydraulic scissor lifts


12m hydraulic scissor lift

Dimensions

 Platform height max.

39 ft (11.9 m)

Working height max.

45 ft (13.9 m)

 Platform extended

3 ft (0.9 m)

  Length - stower

7 ft 8 in (2.39 m)

Width - stower

3 ft 8 in (1.15 m)

 Height - folding guardrails

8 ft 5 in (2.6 m)

Height - rails folded

6 ft 5 in (1.98 m)

Height - fixed rails

8 ft 5 in (2.6 m)

 Wheelbase

6 ft (1.85 m)

Ground clearance

3 in (0.1 m)

Platform size(L*W*H)

7 ft 4 in*3 ft 8 in*3 ft 6 in (2.25 m*1.15 m*1.1 m)

Productivity

Max. platform occupancy

2 (indoor) 1 (outdoor)

Lift capacity

705 lbs (320 kg)

Lift capacity - extension deck

265 lbs (120 kg)

Drive speed - stowed

0~2.0 mph (0~3.2 km/h)

Drive speed - raised

0~0.5 mph (0~0.8 km/h)

Gradeability

25%

Turning radius - inside

0 ft (0 m)

Turning radius - outside

7 ft 7 in (2.35 m)

Raise / Lower speed

65 /47 s

Controls

Proportional

Drives

Dual front wheel

Brakes

Dual rear wheel

Tire size (solid non-marking)

15 in * 5 in (380 mm * 125 mm)

Power

Power source

24V DC (4*6V, 225Ah batteries)

Hydraulic system capacity

5.81 gal (22 L)

Power

3 KW

Weight

Indoor

5765 lbs (2615 kg)

Indoor & outdoor general

6393 lbs (2900 kg)

Standards Compliance

CE/ ISO/ ADR/ ARAMCO
