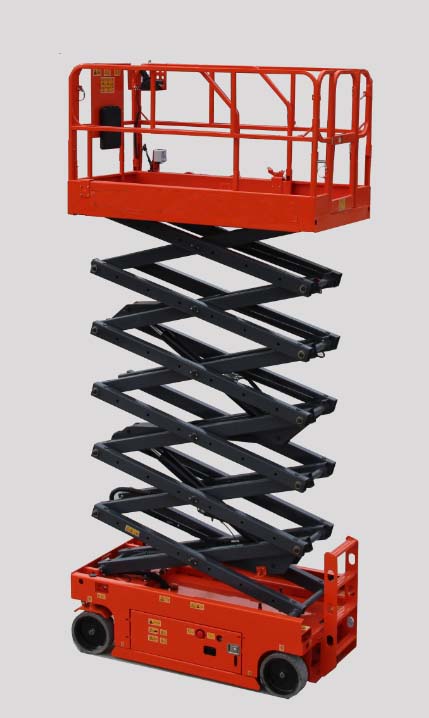

CMJC1212E
- FEATURES
- PARAMETERS
1. Small turning radius: The outside turning radius of the tires is 7 ft 7 in (2.35 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 705 lbs (320 kg) and the load capacity of the extended platform is up to 265 lbs (120 kg).
3. Sufficient electric power: Trojan batteries imported from USA are used with four groups in series, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, energy-saving and environmental protection.
Models | CMJC1212E |
|
Dimensions | ||
| 38 ft (11.6 m) | |
Working height max. | 44 ft (13.6 m) | |
| 3 ft (0.9 m) | |
| 8 ft (2.43 m) | |
Width - stowed | 3 ft 8 in (1.15 m) | |
| 8 ft 9 in (2.7 m) | |
Height - rails folded | 6 ft 7 in (2.04 m) | |
| 6 ft 1 in (1.87 m) | |
Ground clearance | 3 in (0.09 m) | |
Platform size(L*W*H) | 7 ft 5 in*3 ft 8 in*3 ft 6 in (2.3 m*1.15 m*1.1 m) | |
Productivity | ||
Max. platform occupancy | 2 (indoor) 1 (outdoor) | |
Lift capacity | 705 lbs (320 kg) | |
Lift capacity - extension deck | 265 lbs (120 kg) | |
Drive speed - stowed | 0～2.5 mph (0~4 km/h) | |
Drive speed - raised | 0～0.5 mph (0~0.8 km/h) | |
Gradeability | 20% | |
Turning radius - inside | 0 ft (0 m) | |
Turning radius - outside | 7 ft 7 in (2.35 m) | |
Raise / Lower speed | 65 /45 s | |
Controls | Proportional | |
Drives | Dual front wheel | |
Brakes | Dual rear wheel | |
Tire size (solid non-marking) | 16 in * 5 in (406 mm * 125 mm) | |
Power | ||
Power source | 24V DC (4*6V, 225Ah batteries) | |
Hydraulic system capacity | 4.23 gal (16 L) | |
Power | 3 KW | |
Weight | ||
Indoor | 6173 lbs (2800 kg) | |
Indoor & outdoor general | 6900 lbs (3130 kg) | |
Standards Compliance | CE/ ISO/ ADR/ ARAMCO | |
