Aerial working platform
Aerial working platform

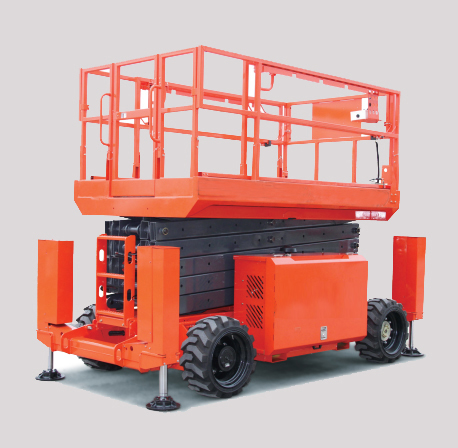

CMJC1218D
- FEATURES
- PARAMETERS
1. Small turning radius: The outside turning radius of the tires is 15 ft (4.6 m) and the inside turning radius is 6.9 ft (2.11 m).
2. Large load capacity: The maximal load capacity reaches 804 lbs (365 kg) and the load capacity of the extended platform is up to 308 lbs (140 kg).
3. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
4. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
5. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
6. Easy maintenance: Dual revolving doors, easy to maintain.
7. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
Models | CMJC1218D | |
Dimensions | ||
Platform height max. | 40 ft (12.2 m) | |
Working height max. | 46.58 ft (14.2 m) | |
Platform extended | 4.92 ft (1.5 m) | |
OverallLength (stowed,with outrigger/without) | 12ft/10.8ft(3.77m/3.29m) | |
Overall width(stowed) | 5.77 ft (1.76 m) | |
Overall height | 6.9 ft (2.1 m) | |
Wheelbase | 7.5 ft (2.286 m) | |
Ground Clearance | 0.72 ft (0.22 m) | |
Platform size (L*W*H) | 9.17 ft*5.24ft*3.6ft | |
Productivity | ||
Max. platform occupancy | 3(indoor), 2(outdoor) | |
Lift capacity | 804 lbs (365 kg) | |
Lift capacity - extension outreach | 308 lbs (140 kg) | |
Driving speed - stowed | 0~5.6 km/h | |
Driving speed - raised | 0~0.48 km/h | |
Gradeability | 35% | |
Turning radius - inside | 6.9 ft (2.11 m) | |
Turning radius - outside | 15 ft (4.6 m) | |
Rising / Falling speed (without loading) | 55s~65s / 45s~50s | |
Controls | Proportional | |
Drive&steer model | 4WD*2WS | |
Hydraulic system pressure | 24Mpa | |
Tire Size/type | 26*12-16.5/solid foam | |
Power | ||
Control voltage | 12VDC | |
Hydraulic system tank vol. | 95 L | |
Fuel tank vol. | 48 L | |
Weight | ||
Overall weight | 11420 lbs (5180 kg) / | |
StandardsCompliance | CE/ISO/ADR/ARAMCO | |
