Aerial working platform
Aerial working platform

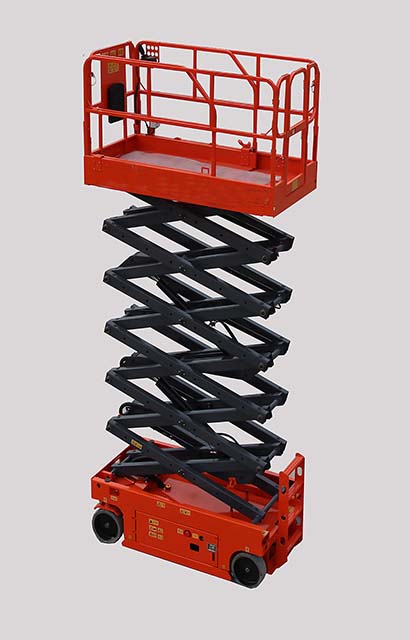

CMJC1412
- FEATURES
- PARAMETERS
1. Small turning radius: The outside turning radius of the tires is 8.4 ft (2.56 m) and the inside turning radius is 0 ft (0 m).
2. Large load capacity: The maximal load capacity reaches 500 lbs (227kg).
3. Sufficient electric power: Trojan batteries imported from USA are used, single cell capacity is up to 260Ah; 5-7h duration in normal operation.
4. Advanced technology: Adpot DeltaTech control system and fault self-diagnosis technique, with anti-collision transducer option.
5. High reliability: Imported key components and the waterproof capacity of major electric components is up to IP65.
6. Good safety: Equipped with horizontal switch and weighing sensor, which ensures the safety of equipment and operators.
7. Easy maintenance: Dual revolving doors, easy to maintain.
8. Energy-saving and environment-friendly: Low noise, no pollution, up to energy-saving and environmental protection standard.
Models | CMJC1412 |
|
Dimensions | ||
| 45 ft (13.8 m) | |
Working height max. | 52 ft (15.8 m) | |
| 3 ft (0.9 m) | |
| 9 ft (2.76 m) | |
Width - stowed | 4 ft (1.25 m) | |
| 7.2 ft (2.20 m) | |
Height - guardrail unfolded | 8.53 ft (2.60 m) | |
| 7.3 ft (2.22 m) | |
Ground clearance | 0.33 ft (0.1 m) | |
Platform size (L*W*H) | 8.66 ft * 2.66 ft * 3.6 ft (2.64 m*0.81 m*1.1 m) | |
Productivity | ||
Max. platform occupancy | 2 (indoor), 1(outdoor) | |
Lift capacity | 500 lbs (227kg) | |
Driving speed - stowed | 0~3.2 km/h | |
Driving speed - raised | 0~0.8 km/h | |
Gradeability | 25% | |
Turning radius - inside | 0 ft (0 m) | |
Turning radius - outside | 8.4 ft (2.56 m) | |
Raising / Falling speed | 75s~85s /55s~63s | |
Controls | Proportional | |
Drive &steer model | 2WD, front -wheel | |
Brake | 2 rear-wheel | |
Tire | 380 mm * 125 mm/solid | |
Power | ||
Power source | 24V DC (4*6V, 225Ah batteries) | |
Hydraulic system tank vol. | 25 L | |
Power | 4.5 KW | |
Weight | ||
overall weight ( indoor/outdoor ) | 6834 lbs (3100 kg) | |
Standards Compliance | CE/ ISO/ ADR/ ARAMCO | |
