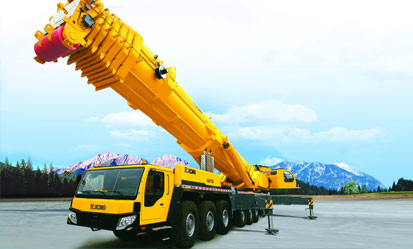

QAY160

Classificatory

Item

Unit

Parameter

Dimension

Overall length

mm

15900

Overall width

mm

3000

Overall height

mm

4000

Wheel base

Axle 1, Axle 2

mm

2750

Axle 2,Axle 3,Axle 4,Axle 5, Axle 6

mm

1650

Axle 3, axle 4

mm

2000

Track

mm

2590



Mass

Total mass in travel state

kg

70900

Axle load

Axle 1, Axle 2

kg

11635

Axle 3, Axle 4

kg

11815

Axle 5, Axle 6

kg

12000

Power

Crane superstructure

engine

Rated power

kW/(r/min)

162/2100

Rated torque

N.m/(r/min)

854/1400

Rated speed

r/min

2100

Crane carrier engine

Rated power

kW/(r/min)

380/1800

Rated torque

N.m/(r/min)

2400/1200

Rated speed

r/min

2000

Travel performance

Travel speed

Max. travel speed

km/h

71

Min. stable travel speed

km/h

2.1

Min. turning diameter

m

24

Min. ground clearance

mm

278

Approach angle

°

25

Departure angle

°

20

Braking distance (at 30km/h with full load)

m

≤ 10

Max. grade-ability

%

48

Fuel consumption for 100km

l

80


Technical Data for Lifting Operation



Classificatory

Item

Unit

Parameter

Main

performance

Max. total rated lifting capacity

t

160

Min. rated working radius

m

3

Turning radius at turntable tail

mm

4850

Max. load moment

Base boom

kN.m

5282

Fully extended boom

kN.m

2140

Outrigger span

Longitudinal

m

9.625

Lateral

m

8.7(6.5)

Lifting height

Base boom

m

14.3

Fully extended boom

m

56.3

Fully extended boom + Jib

m

79

Boom length

Base boom

m

13.6

Fully extended boom

m

60

Fully extended boom + Jib

m

80

Jib offset

°

0、15、30



Working

speed

Boom elevating time

Boom raising

s

90

Boom telescoping time

Boom full extension

s

600

Boom full retraction

s

600

Max. swing speed

r/min

2

Hoist speed (single rope at 4th layer)

Main winch

No load

m/min

120

Aux. winch

No load

m/min

110

Crane exterior noise

db(A)

≤118

At seated position

db(A)

≤90
