All terrain truck crane
All terrain truck crane

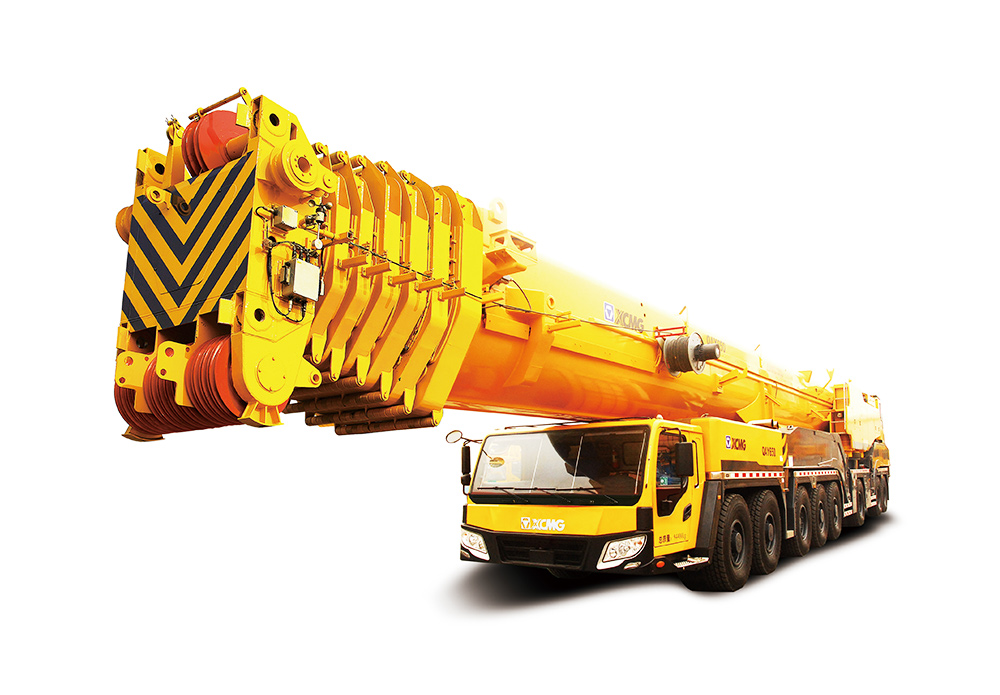

QAY650
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Dimension | ||
| Overall Length | (mm) | 22695 |
| Overall Width | (mm) | 3000 |
| Overall Height | (mm) | 4000 |
| Wheel Base | (mm) | 1500+2150+1500+1500+3430+3680+1500 |
| Wheel Tread | (mm) | 2590*8 |
| Weight | ||
| Travelling Weight | (kg) | 94400 |
| Axle Load | (kg) | 11680*5+12000*3 |
| Kinetic Parameter | ||
| Engine Model(Upper) | OM906LA.E3A/1 | |
| Rated Power | (kw/(r/min)) | 205/2200 |
| Rated Torque | (N.m/(r/min)) | 1100/1200-1600 |
| Engine Model(Chassis) | OM502LA.E3B/1 | |
| Rated Power | (kw/(r/min)) | 482/1800 |
| Rated Torque | (N.m/(r/min)) | 3000/1300 |
| Travelling Parameter | ||
| Travelling | ||
| Max.Travelling Speed | (km/h) | 75 |
| Min.Stable Travelling Speed | (km/h) | 2 |
| Turning | ||
| Min Diameter of Turning Circle | (m) | 29 |
| Min Diameter of Turning Circle of Boom Head | (m) | 35 |
| Max Gradeability | (％) | 40 |
| Minimum Ground Clearance | (mm) | 280 |
| Approach Angle | (°) | 12.3 |
| Departure Angle | (°) | 30.2 |
| Braking Length | (m) | ≤10 |
| Fuel Consumption Per Hundred Kilometers | (L) | 110 |
| Main Performance Parameters | ||
| Max.Rated Lifting Capacity | (t) | 650 |
| Min.Rated Range | (m) | 3 |
| Max. Lifting Moment of Basic Boom | (kN·m) | 19500 |
| Turning Radius of Platform Tail | (mm) | 7300 |
| Outriggers | ||
| Lengthways | (m) | 11.1 |
| Transverse | (m) | 10 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 19 |
| Full-extend boom | (m) | 91 |
| Full-extend boom + jib | (m) | 130 |
| Full-extend boom + jib+ extension section | - | - |
| Boom Length | ||
| Basic Boom | (m) | 18 |
| Full-extend boom | (m) | 92 |
| Full-extend boom + jib | - | 123.7 |
| Full-extend boom + jib+ extension section | (m) | 56 |
| Working Speed | ||
| Max Rotating Speed | (r/min) | ≥1 |
| Lifting Speed | ||
| Main Hoisting Mechanism | (m/min) | 140 |
| Auxiliary Hoisting Mechanism | (m/min) | - |
| Winch of Luffing jib | (m/min) | 140 |
| Boom Extend-retract Time | ||
| Full-extend | (s) | 1350 |
| Full-retract | (s) | 1350 |
| Luffing Time | ||
| Full Extension Time | (s) | ≤150 |
| Full Retract Time | (s) | 300 |
| Outrigger--horizontal | ||
| Open Simultaneously--horizontal | (s) | - |
| Close Simultaneously--horizontal | (s) | - |
| Outrigger--Vertical | ||
| Open Simultaneously | (s) | - |
| Close Simultaneously | (s) | - |
