All terrain truck crane
All terrain truck crane

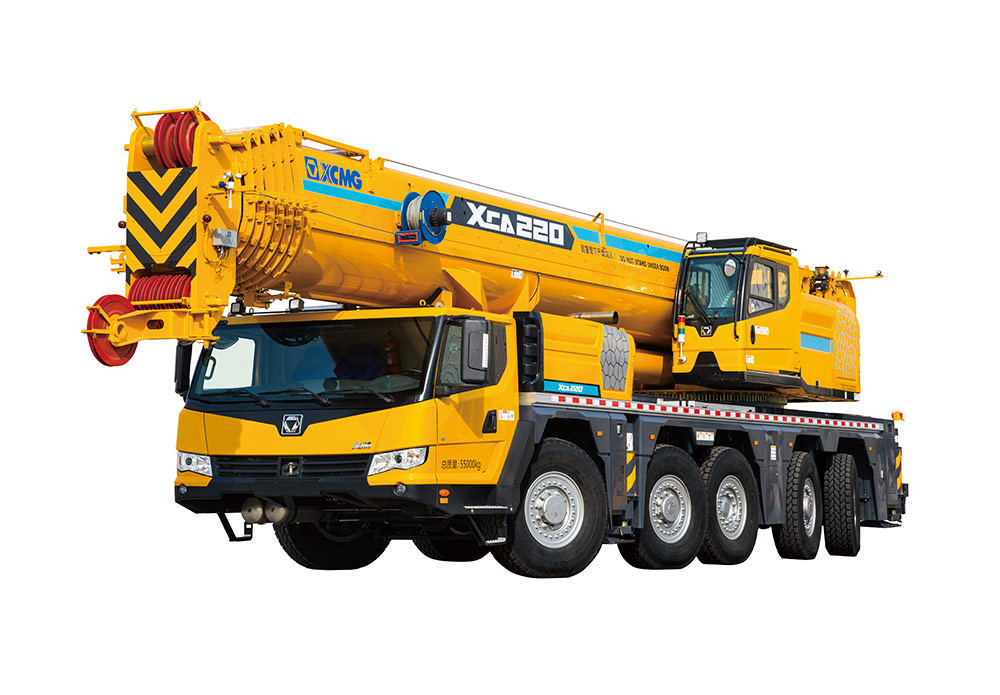

XCA220
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Dimension | ||
| Overall Length | (mm) | 15500 |
| Overall Width | (mm) | 2980 |
| Overall Height | (mm) | 3930 |
| Wheel Base | (mm) | 2650+1650+2500+1650 |
| Wheel Tread | (mm) | 2590 |
| Weight | ||
| Travelling Weight | (kg) | 55000 |
| Axle Load | (kg) | 12000*3+9500*2 |
| Kinetic Parameter | ||
| Engine Model(Upper) | OM460LA.E3B/3 | |
| Rated Power | (kw/(r/min)) | 361/1800 |
| Rated Torque | (N.m/(r/min)) | 2200/1300 |
| Engine Model(Chassis) | - | |
| Rated Power | (kw/(r/min)) | - |
| Rated Torque | (N.m/(r/min)) | - |
| Travelling Parameter | ||
| Travelling | ||
| Max.Travelling Speed | (km/h) | 84 |
| Min.Stable Travelling Speed | (km/h) | 1-1.5 |
| Turning | ||
| Min Diameter of Turning Circle | (m) | 18.5 |
| Min Diameter of Turning Circle of Boom Head | (m) | 22.5 |
| Max Gradeability | (％) | 67 |
| Minimum Ground Clearance | (mm) | 280 |
| Approach Angle | (°) | 18 |
| Departure Angle | (°) | 14 |
| Braking Length | (m) | ≤9 |
| Fuel Consumption Per Hundred Kilometers | (L) | 65 |
| Main Performance Parameters | ||
| Max.Rated Lifting Capacity | (t) | 220 |
| Min.Rated Range | (m) | 3 |
| Max. Lifting Moment of Basic Boom | (kN·m) | 7393 |
| Turning Radius of Platform Tail | (mm) | 5030 |
| Outriggers | ||
| Lengthways | (m) | 8.89 |
| Transverse | (m) | 8.3 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 13.4 |
| Full-extend boom | (m) | 73.5 |
| Full-extend boom + jib | (m) | 108 |
| Full-extend boom + jib+ extension section | - | - |
| Boom Length | ||
| Basic Boom | (m) | 13.4 |
| Full-extend boom | (m) | 73 |
| Full-extend boom + jib | - | 108.2 |
| Full-extend boom + jib+ extension section | (m) | - |
| Working Speed | ||
| Max Rotating Speed | (r/min) | 1.9 |
| Lifting Speed | ||
| Main Hoisting Mechanism | (m/min) | 130 |
| Auxiliary Hoisting Mechanism | (m/min) | 130 |
| Winch of Luffing jib | (m/min) | - |
| Boom Extend-retract Time | ||
| Full-extend | (s) | 600 |
| Full-retract | (s) | 600 |
| Luffing Time | ||
| Full Extension Time | (s) | 55 |
| Full Retract Time | (s) | - |
| Outrigger--horizontal | ||
| Open Simultaneously--horizontal | (s) | - |
| Close Simultaneously--horizontal | (s) | - |
| Outrigger--Vertical | ||
| Open Simultaneously | (s) | 100 |
| Close Simultaneously | (s) | 70 |
