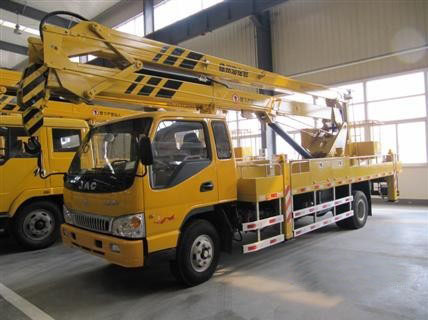

Articulated boom aerial working platform

CM5112JGKA

REQUEST A QUOTE

You have choose: Articulated boom aerial working platform - CM5112JGKA

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
CM5112JGKA

Main Feature：
● Electro-hydraulic proportional control, stepless throttle
● Control box at both turret and platform
● Equiped with jib to realize a larger working range
● Limit switch and alarm
● Large outrigger span, outrigger can be operate individually
● Emergency descent power, interphone system, engine stop-start switch
● Safety interlock

Model

XHZ5112JGKA

Chassis Model

HFC1121KR1T

Platform Safe Work Load

300kg

Max. Work Height

20.5m

Max. Work Range

10.3m

Seating Capacity

3 people

Dimension

9250mm×2380mm×3520mm

Crane Max. Lift Weight

3000 kg/5000kg(optional)

Crane Max. Lift Height

13m
