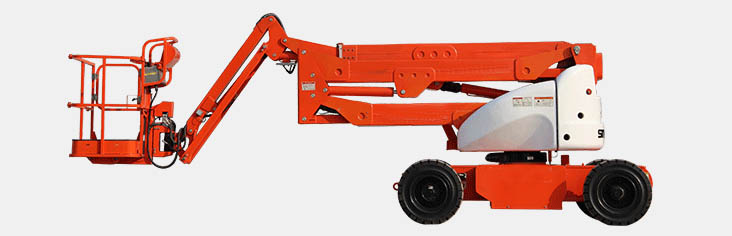

CMQB14EJ
- FEATURES
- PARAMETERS
1. Wide operating range: 355°full direction operation at the height from 0~ 51 ft (15.7 m), with a horizontal reach max. by 24 ft 3 in (7.4 m) and a crossing height of 24 ft 3 in (7.4 m).
2. Large load capacity: The lift capacity is 500 lbs (227 kg); the platform can hold two operators and some auxiliary tools.
3. Powerful driving force: The engine is of famous international brand, large in power and excellent in gradeability. The maximal gradeability can be up to 30%.
4. Advanced technology: Self-adaption oscillating axle, fault self-diagnosis technique, anti-collision transducer device, and hydraulic self-levelling system.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system, anti-collision device (option).
Models | CMQB14EJ |
|
Dimensions | ||
Platform height max. | 45 ft (13.7 m) | |
Working height max. | 51 ft (15.7 m) | |
Horizontal reach max. | 24 ft 3 in (7.4 m) | |
Up and over clearance max. | 24 ft 3 in (7.4 m) | |
| 21 ft 5 in (6.54 m) | |
| 5 ft 7 in (1.75 m) | |
| 6 ft 6 in (2 m) | |
| 6 ft 6 in (2 m) | |
Ground clearance | 8 in (0.2 m) | |
Platform size (L*W*H) | 5 ft*2 ft 5 in*3 ft 7 in (1.52 m*0.77 m*1.14 m) | |
Productivity | ||
Max. platform occupancy | 2 | |
Lift capacity | 500 lbs (227 kg) | |
Turntable rotation | 355° | |
Platform rotation | 160° | |
Drive speed - stowed | 0～3.2 mph (0~5.2 km/h) | |
Drive speed - raised | 0～0.5 mph (0~0.8 km/h) | |
Gradeability | 30% | |
Turning radius - inside | 2 ft 3 in (0.7 m) | |
Turning radius - outside | 10 ft 6 in (3.23 m) | |
Turntable tailswing | 0 ft (0 m) | |
Max. allowable slope | 3° | |
Drive & steer model | 2 WD * 2 WS | |
Tire size / type | 250*15 / solid | |
Power | ||
Power source | Battery | |
Driving Type | Electromotor move | |
Hydraulic system capacity | - | |
Battery specification | 420 Ah, 6V * 8 | |
Weight | ||
Overall weight | 14330 lbs (6500 kg) | |
Standards Compliance | CE/ ISO/ ADR/ ARAMCO | |
