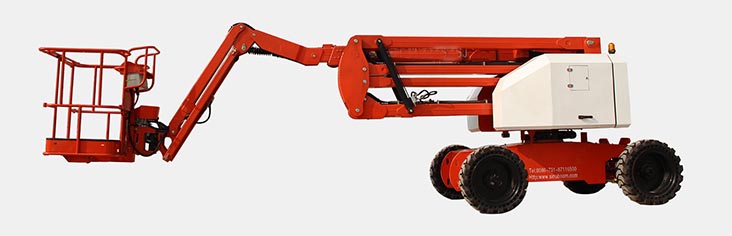

CMQB15J
  • 1. Wide operating range: 355°full direction operation at the height from 0~55 ft (17m), with a horizontal reach max. by 27 ft 9 in (8.5 m) and a crossing height of 24 ft 6 in (7.5 m).
    2. Large load capacity: The lift capacity is 551 lbs (250 kg); the platform can hold two operators and some auxiliary tools.
    3. Powerful driving force: The engine is of famous international brand, large in power and excellent in gradeability. The maximal gradeability can be up to 40%.
    4. Advanced technology: Self-adaption oscillating axle, fault self-diagnosis technique, anti-collision transducer device, and hydraulic self-levelling system.
    5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
    6. Good safety: Overload limit and rollover protection system, anti-collision device and self inspection and restriction against over-amplitude are optional.
    7. Easy maintenance: The engine can be screwed off for maintenance. It employs a self-lubricating slider. The boom system is free of maintenance.


Models

CMQB15J



small articulating boom lift



15m small boom lift



Dimensions

Platform height max.

49 ft (14.7 m)

Working height max.

55 ft (16.7 m)

Horizontal reach max.

27 ft 9 in (8.5 m)

Up and over clearance max.

24 ft 3 in (7.4 m)

 Length - stowed

25 ft 2 in (7.68 m)

 Width - stowed

7 ft 4 in (2.26 m)

 Height - stowed

7 ft 1 in (2.22 m)

 Wheelbase

6 ft 7 in (2.03 m)

Ground clearance

1 ft (0.32 m)

Platform size (L*W*H)

4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m)

Productivity

Max. platform occupancy

2

Lift capacity

551 lbs (250 kg)

Turntable rotation

355°

Platform rotation

160°

Drive speed - stowed

0~4.3 mph (0~7 km/h)

Drive speed - raised

0~0.7 mph (0~1.1 km/h)

Gradeability

30%(2WD) 40%(4WD)

Turning radius - inside

5 ft 9 in (1.8 m)

Turning radius - outside

14 ft 8 in (4.5 m)

Turntable tailswing

0 ft (0 m)

Max. allowable slope

Drive & steer model

2 WD * 2 WS / 4 WD * 2 WS

Tire size / type

33*12 - 20 / solid

Power

Power source

Perkins Engine

Driving type

Hydraulic

Fuel tank capacity

18.49 gal (70 L)

Control voltage

12 VDC

Power

37.3 KW

Weight

Overall weight

15102 lbs (6850 kg) - 2WD
15543 lbs (7050 kg) - 4WD

Standards Compliance

CE/ ISO/ ADR/ ARAMCO
