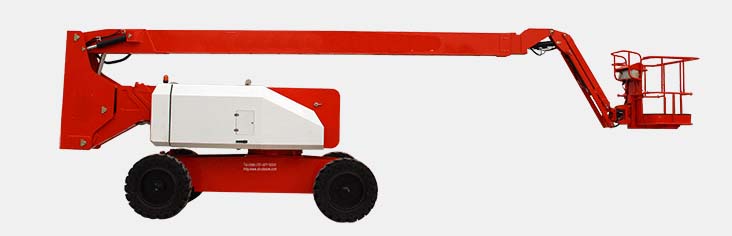

CMQB25J
- FEATURES
- PARAMETERS
1. Wide operating range: 360° full direction operation at a height from 0~87 ft (26.6 m), with a horizontal reach max. by 52 ft 8 in (16.1 m) and a crossing height of 30 ft 8 in (9.4 m).
2. Large load capacity: The lift capacity is 507 lbs (230 kg); the platform can hold two operators and some auxiliary tools.
3. Powerful driving force: The engine is of famous international brand, large in power and excellent in gradeability. The maximal gradeability can be up to 45%.
4. Advanced technology: Self-adaption oscillating axle, fault self-diagnosis technique, anti-collision transducer device, and hydraulic self-levelling system.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system, anti-collision device and self inspection and restriction against over-amplitude are optional.
7. Easy maintenance: The engine can be screwed off for maintenance. It employs a self-lubricating slider. The boom system is free of maintenance.
Models | CMQB25J |
|
Dimensions | ||
Platform height max. | 81 ft (24.6 m) | |
Working height max. | 87 ft (26.6 m) | |
Horizontal reach max. | 52 ft 8 in (16.1 m) | |
Up and over clearance max. | 30 ft 8 in (9.4 m) | |
Length - stowed | 37 ft 3 in (11.36 m) | |
Width - stowed | 8 ft 1 in (2.48 m) | |
Height - stowed | 10 ft 4 in (3.16 m) | |
Wheelbase | 10 ft (3.05 m) | |
Ground clearance | 1 ft 3 in (0.39 m) | |
Platform size (L*W*H) | 4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m) | |
Productivity | ||
Max. platform occupancy | 2 | |
Lift capacity | 507 lbs (230 kg) | |
Turntable rotation | 360° continuous | |
Platform rotation | 160° | |
Drive speed - stowed | 0~3.0 mph (0~4.8 km/h) | |
Drive speed - raised | 0~0.7 mph (0~1.1 km/h) | |
Gradeability | 45% | |
Turning radius - inside | 9 ft 8 in (3.0 m) | |
Turning radius - outside | 20 ft 8 in (6.33 m) | |
Turntable tailswing | 3 ft 3 in (1 m) | |
Max. allowable slope | 3° | |
Drive & steer model | 4 WD * 2 WS | |
Tire size / type | 12.00 - 20 / 8.5 solid | |
Power | ||
Power source | Original Cummins Engine | |
Driving type | Hydraulic | |
Fuel tank capacity | 42.27 gal (160 L) | |
Control voltage | 12 VDC | |
Power | 60 KW | |
Weight | ||
Overall weight | 35053 lbs (15900 kg) | |
Standards Compliance | CE/ ISO/ ADR/ ARAMCO |
