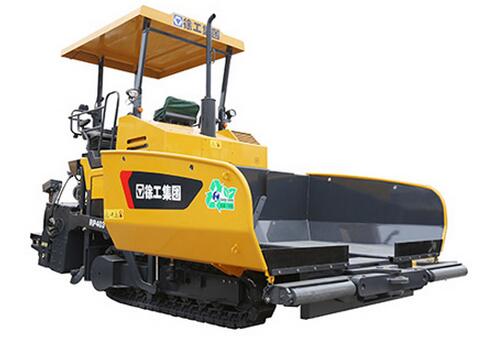

Asphalt paver
Asphalt paver
RP403
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | Parameters |
| Working Parameter | ||
| Theoretical Productivity | (t/h) | 300 |
| Max. paving width | (m) | 4.2 |
| Max. paving thickness | (mm) | 200 |
| Max Paving speed | (m/min) | 30 |
| Pavement evenness | (mm/3m) | ≤2 |
| Compactedness | (%) | ≥80 |
| Transverse levelling accuracy | (%) | ≤5 |
| Travel speed parameters | ||
| Maximum travel speed | (km/h) | 3.6 |
| Drive type | - | crawler type |
| Gradeability | (%) | 20 |
| Mini diameter of turning circle | (wheel type) | / |
| Service braking system | - | hydrostatic |
| Parking braking system | - | multiple brake disk, hydraulic release |
| Track tension | (crawler type ) | hydraulic track tension |
| Braking distance | (wheel type) | / |
| Tyre size | (wheel type) | / |
| Conveyor&feeding parameter | ||
| Type | - | independent conveyo&feeding |
| Drive type | - | left /right independent hydraulic drive |
| Scraper conveyor speed | (m/min) | 0～28 |
| Screw feeding speed | (r/min) | 0～75 |
| Screw diameter | (mm) | 300 |
| Lubricating system | - | hand lubrication |
