Asphalt paver
Asphalt paver

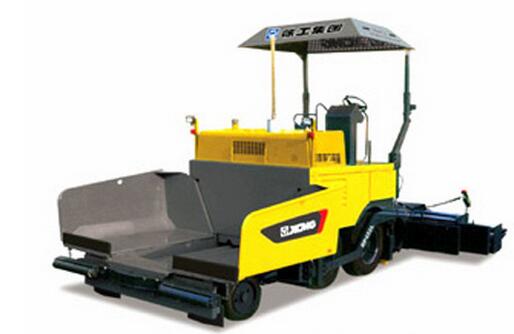

RP452L
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | Parameters |
| Working Parameter | ||
| Theoretical Productivity | (t/h) | 240 |
| Max. paving width | (m) | 4.5 |
| Max. paving thickness | (mm) | 150 |
| Max Paving speed | (m/min) | 13 |
| Pavement evenness | (mm/3m) | 3 |
| Compactedness | (%) | ≥80 |
| Transverse levelling accuracy | (%) | ＜5 |
| Travel speed parameters | ||
| Maximum travel speed | (km/h) | 13 |
| Drive type | - | (wheel type |
| Gradeability | (%) | 20 |
| Mini diameter of turning circle | (wheel type) | 16 |
| Service braking system | - | hydrostatic+Multiple brake disk, hydraulic release |
| Parking braking system | - | wet type Multiple brake disk |
| Track tension | (crawler type ) | / |
| Braking distance | (wheel type) | 4.7 |
| Tyre size | (wheel type) | 974 |
| Conveyor&feeding parameter | ||
| Type | - | conveyo&feeding linkage |
| Drive type | - | Bridge type hydraulic drive |
| Scraper conveyor speed | (m/min) | 0～30 |
| Screw feeding speed | (r/min) | 0～73 |
| Screw diameter | (mm) | 360 |
| Lubricating system | - | hand lubrication |
