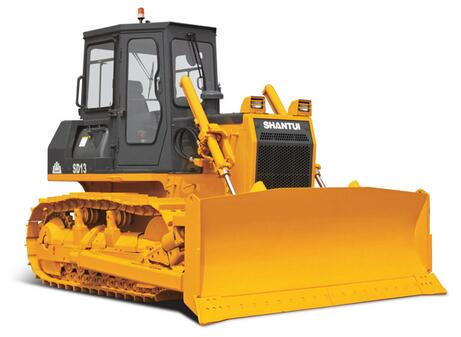

Bulldozer

SD13

REQUEST A QUOTE

You have choose: Bulldozer - SD13

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
SD13

● The turbocharged engine features strong power, high efficiency and energy-saving, and high torque reserve efficiency.

● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating effic

● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances.

● The valves and pumps are reasonably arranged to ease the repairs and maintenances. The multi-stage filtration system is adopted to effectively guarantee the oil cleanliness and reduce the malfunction rate of hydraulic system.

● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.

● The electric system features stable and reliable working. All instruments are controlled by microcomputer, featuring vivid and distinct display and accurate and convenient readings.

● The rigid traveling system effectively improves the stability of machine under complicated working conditions.

● The comfortable and convenient operating console, light controls, and adjustable seat and armrests provide the operation personnel with comfortable operating experiences.

● The working device features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions.

● The standard straight tilting blade features strong cutting force to handle all kinds of severe working faces and the outstanding durability of blade is guaranteed by the application of high strength structure and high performance materials.


Length × width × height (mm) (excluding ripper)4492×3185×2950Operating weight(t) (excluding ripper)13.7
Engine modelSC8D143G2B1Net power/rated speed (kW/rpm)95.5/1900
Ground pressure(Mpa)0.063Blade type Straight tilting blade
Blade capacity(m3)3.158 for straight tilting blade   2.33 for angle blade
