Bulldozer
Bulldozer

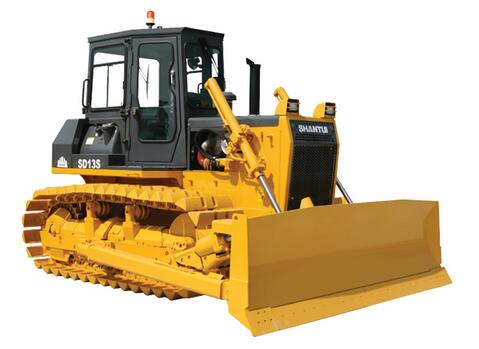

SD13S
REQUEST A QUOTE
- FEATURES
- PARAMETERS
●The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal operations.
●The wet type steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the rapid and flexible steering controls by joysticks.
●It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions for roads, farms, water conservancy projects, municipal projects, and energy projects.
| Length × width × height (mm) (excluding ripper) | 4492×3450×3000 | Operating weight (t) (excluding ripper) | 14.9 |
| Engine model | SC8D143G2B1 | Net power/rated speed (kW/rpm) | 95.5/1900 |
| Ground pressure(Mpa) | 0.044 | Blade type | Straight tilting blade Angle blade |
| Blade capacity(m3) | 2.89 for straight tilting blade 2.24 for angle blade |
