Bulldozer
Bulldozer

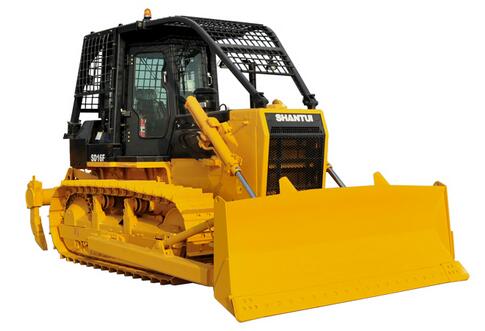

SD16F
REQUEST A QUOTE
- FEATURES
- PARAMETERS
● This product is suitable for the operations in lumbering sites. Meanwhile, the winch installed on the rear end of the bulldozer can be used for transport of lumbers and other traction operations. For the operations in hazardous areas, the winch equipped can be used for self-rescue when necessary.
●The standard lumbering blade can powerfully remove all kinds of bramble obstacles along the lumbering path to achieve high lumbering efficiency of the bulldozer.
● The winch is used for traction of the lumbers and self-rescue of the bulldozer during the lumbering operations, of which the powerful traction force guarantees high operation efficiency. The unique self-rescue function of the winch guarantees the operator’s safety.
| Length × width × height (mm) (excluding ripper) | 5140×3388×3180 | Operating weight(t): (excluding ripper) | 17 |
| Engine model | WD10G178E25/ SC11CB184G2B1 | Net power/rated speed (kW/rpm) | 120/1850 |
| Ground pressure(Mpa) | 0.058 | Blade type | Straight tilting blade Angle blade |
| Blade capacity(m3) | 4.5 for straight tilting blade and 4.3 for angle blade |
