Bulldozer
Bulldozer

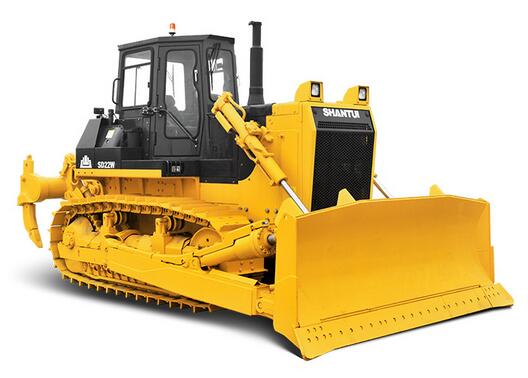

SD22W
REQUEST A QUOTE
- FEATURES
- PARAMETERS
● It’s equipped with high strength wear-resistant rock blade and push rod and is applicable for heavy-load conditions (such as coarse sands, stones, and decomposed rocks).
| Length × width × height (mm) (excluding ripper) | 5495×3725×3745 | Operating weight(t)(excluding ripper) | 23.6 |
| Engine model | WD12G240E206/NT855-C280S10 | Net power/rated speed (kW/rpm) | 162/1800 |
| Ground pressure(Mpa) | 0.077 | Blade type | Straight tilting blade Angle blade U blade Semi-U blade |
| Blade capacity(m3) | 6.4 for straight tilting blade 4.7 for angle blade 7.5 for U blade 7.0 for Semi-U blade |
