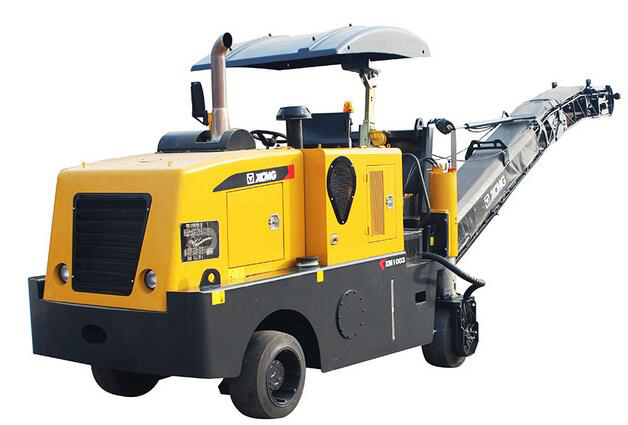

Cold milling machine
Cold milling machine
XM1003
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | Parameters | |
| Milling drum | Max.milling and mixing width | 1000mm |
| Max.milling and mixing depth | 180mm | |
| Tools distance | 18mm | |
| Number of tools | 82 | |
| Milling drum diameter | 700mm | |
| Engine | Manufacture | SHANGCHAI |
| Engine model | SC9DK220G3 | |
| Rated power /speed | 162kW | |
| Tank capacity | Fuel tank capacity | 350L |
| Oil tank capacity | 130L | |
| Water capacity | 800L | |
| Operating parameters | Max working speed | 45m/min |
| Travel speed | 8km/h | |
| Operating speed | 0.5 | |
| Gradeability | 180mm | |
| Transport Dimension | Dimension（L×W×H） | 4690mm×2500mm×3500mm |
| Machine weight | Working weight | 15600kg |
