Cold milling machine
Cold milling machine

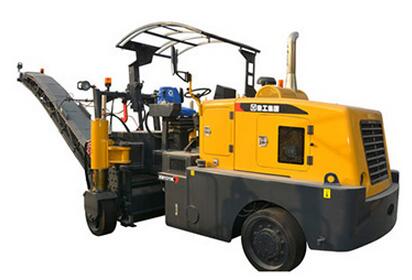

XM101K
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | Unit | Parameters |
| Operating parameters | ||
| Max.milling and mixing width | (mm) | 1020 |
| Max.milling and mixing depth | (mm) | 300 |
| Milling drum diameter | (mm) | 930 |
| Number of tools | (m) | 94 |
| Performance parameters | ||
| Travel speed | (km/h) | 0-7 |
| Operating speed | (m/min) | 0-30 |
| Gradeability | (%) | ≥60 |
| Weight | ||
| Operating weight | (kg) | 17500 |
| Dimension | ||
| Complete dimension(L*W*H) | (mm) | 4570×2550×3795 |
| Conveyor(L*W*H) | (mm) | 7168×720×830 |
| Ground clearance | (mm) | 320 |
| Engine: | ||
| Manufacture | - | SHANGCHAI |
| Engine model | - | SC8D220G2B1 |
| Rated power /speed | (kw/r/min) | 162/2200 |
