Cold milling machine
Cold milling machine

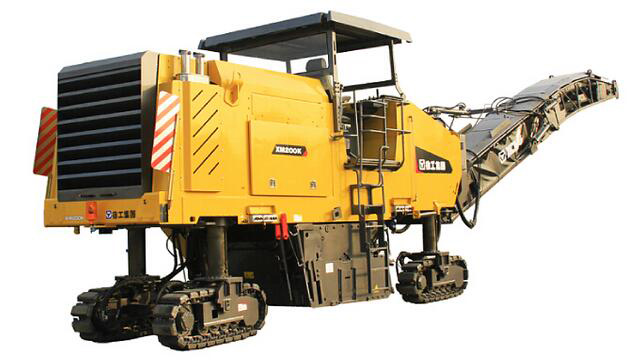

XM200K
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | Unit | Parameters |
| Operating parameters | ||
| Max.milling and mixing width | (mm) | 2000 |
| Max.milling and mixing depth | (mm) | 320 |
| Milling drum diameter | (mm) | 980 |
| Number of tools | (m) | 168 |
| Performance parameters | ||
| Travel speed | (km/h) | 0-5 |
| Operating speed | (m/min) | 0-30 |
| Gradeability | (%) | ≥80% |
| Weight | ||
| Operating weight | (kg) | 34000 |
| Dimension | ||
| Complete dimension(L*W*H) | (mm) | 7130X2500X3000 |
| Conveyor(L*W*H) | (mm) | 8000X1150X900 |
| Ground clearance | (mm) | 320 |
| Engine | ||
| Manufacture | - | Original Cummins |
| Engine model | - | QSX15Ⅲ |
| Rated power /speed | (kw/r/min) | 447/2100 |
