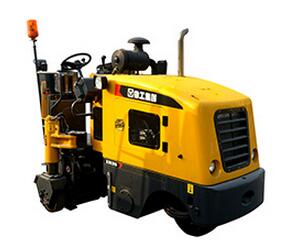

Cold milling machine
Cold milling machine
XM35K
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | Unit | Parameters |
| Operating parameters | ||
| Max.milling and mixing width | (mm) | 350 |
| Max.milling and mixing depth | (mm) | 100 |
| Milling drum diameter | (mm) | 580 |
| Number of tools | (m) | 44 |
| Performance parameters | ||
| Travel speed | (km/h) | 0-6 |
| Operating speed | (m/min) | 0-38 |
| Gradeability | (%) | 50 |
| Weight | ||
| Operating weight | (kg) | 4800 |
| Dimension | ||
| Complete dimension(L*W*H) | (mm) | 2880×1435×2080 |
| Conveyor(L*W*H) | (mm) | - |
| Ground clearance | (mm) | 100 |
| Engine: | ||
| Manufacture | - | YUCHAI |
| Engine model | - | YC4D95Z-T21 |
| Rated power /speed | (kw/r/min) | 70/2200 |
