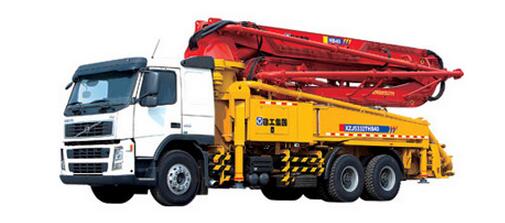

HB40
- FEATURES
- PARAMETERS
• Efficient and reliable pumping
• High configuration imported pump and motor ensure the reliability and stability of the hydraulic and electrical systems.
• The imported hydraulic oil filter ensures the cleanness of the hydraulic system and long service life of the hydraulic components.
• The adopted latest closed and variable hydraulic system of constant power has the full power takeoff, featuring 3MPa less in pressure loss, and saving the energy by 10%.
• The unique product in the hydraulic system-SN valve reduces the impact when changing the direction and settles the common issue of vibration of the pump, increasing the stability of the machine.
• The adopted S type change valve and new center pumping system feature higher efficiency, longer service life and more convenient maintenance.
• Keep the inclination of the optimized hopper in the best position, and adopt the automatic rotation device which could keep the hopper from blocking by the stone.
• Delivery pump, reducer piper and glasses board and cutting ring adopt the high-abrasive material, prolonging the service life of the wearing parts.
Load sensing electro-hydraulic proportional control valve features excellent fine mobility and quick response.
• Intelligent experience
• X outrigger and one side operation.
• High and low pressure change freely.
• Multiple boom folding methods such as ”R” and “RZ” type features large placing area.
• The imported grease and oil automatic lubricating system prolongs the service life of the machine and features easy maintenance. The system could automatically lubricate the key points with hydraulic oil.
• The automatic withdrawing technology of trough in concrete piston ensures easier and faster replacement of the piston.
• Precise remote control and receiving device could get 150m remote control, decreasing the operation labor and ensuring the safety of the worker.
• Intelligent electric control box records the working pressure and temperature, and the engine rpm of the truck pump, ready for check and repair. Meanwhile, it adopts the energy saving technology.
• The warning device equipped on the placing boom realizes the information quick delivery among the workers, ensuring the safe and efficient operation.
• The application of night viewing gradienter and outrigger wide light ensures the safe operation of the machine.
| Travel | |||
|---|---|---|---|
| Category | Item | Unit | Parameter |
| Chassis | Model | FM | |
| Manufacturer | VOLVO | ||
| Max. speed | km/h | 90.8 | |
| Max. gradeability | 34.70% | ||
| Min. turning diameter | m | 18.4 | |
| Brake distance | m | ≤7 | |
| Wheelbase | mm | 4900+1370 | |
| Tread (front/rear) | mm | 2019/1834 | |
| Approach angle/departure angle | 。 | 18/10 | |
| Min. clearance | mm | 270 | |
| Tyre specification | 12.00R20 | ||
| Engine | Model | D13 | |
| Output power | kw/(r/min) | 294/1400-1800 | |
| Max. torque | N.m/(r/min) | 2000/1050-1400 | |
| Displacement | l | 12.8 | |
| Emission Standard | Nation III GBⅢ | ||
| Others | Dimension (Length×Width×Height) | mm | 11180×2500×3990 |
| Total vehicle weight | kg | 32600 | |
| Fuel tank capacity | l | 410 | |
| Fuel consumption per 100km | l/100km | 40 | |
| Pumping operation | |||
| Pumping system | Theoretical output(high pressure/low pressure) | m3/h | 70/140 |
| Concrete pumping pressure(high pressure/low pressure) | Mpa | 11.8/6.38 | |
| Theoretical pumping times(high pressure/low pressure) | 次/min | 15/27 | |
| Max. diameter of pumping concrete aggregate | 40 | ||
| Feeding height | 1450 | ||
| Placing boom | Pumping slump range | 12-23 | |
| Reach height | 39.8 | ||
| Reach depth | 27.9 | ||
| Slewing radius | 35.8 | ||
| Slewing angle | 370 | ||
| 1st boom stretch angle | 90 | ||
| 2nd boom stretch angle | 180 | ||
| 3rd boom stretch angle | 180 | ||
| 4th boom stretch angle | 240 | ||
| 5th boom stretch angle | 250 | ||
| Outrigger span | Overall outrigger span | 7800 | |
| Front outrigger transverse span | 8350 | ||
| Rear outrigger transverse span | 7200 | ||
| Others | Dosing type | S valve | |
| Lubricating method | Automatic lubrication | ||
| Controlling method | Manual/remote control | ||
| Water tank capacity | 600 | ||
| Max. pressure of water pump | 2 | ||
