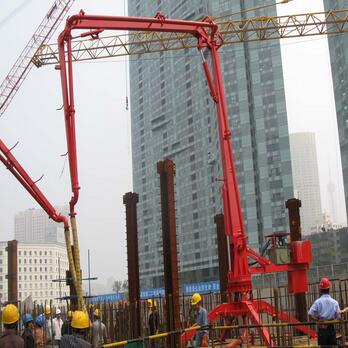

Concrete placing boom
Concrete placing boom
HG17
REQUEST A QUOTE
- FEATURES
- PARAMETERS
Advanced full hydraulic drive system
The hydraulic system of HG13 concrete placing boom can realize 360° slewing, the balance valve and solenoid directional control valve are relatively imported from
Italian Oil control and Germany Rexroth.
Reliable electrical system
Main components of HG series concrete placing boom are imported from world famous companies such as France Schneider.
Cable & wired remote control.
Model | HG17 | |
Boom length | 17 m (6.73+5.63+4.64m） | |
Hose length | 3 m | |
Rotary angle | 360° | |
Rotary speed | 0.46 r/min | |
Pitching angle | -2～84.4° | |
Pressure | 20 Mpa | |
Motor power | 5.5 kW | |
Drive mode | Completely Hydraulic | |
Weight | Self weight | 4.94 t |
Counter weight | 2.1 t | |
