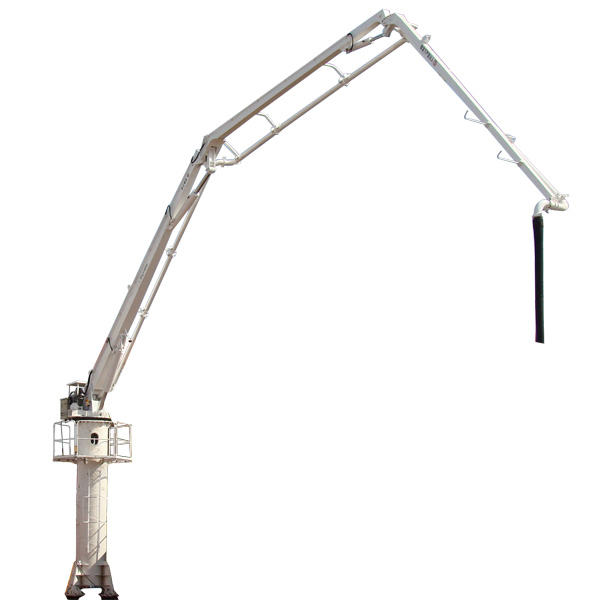

HG24

Application

Stationary type. Mainly used for concrete placing of construction project, including civil construction, plant construction, bridge construction, beam yard, nuclear power plant, infrastructure, etc.

Charactics

Modular design, mechanical and electrical integration control, folding boom, tube column. Integration of advanced features and product diversification, to achieve a higher product portfolio, improve the applicability of the product.

Imported hydraulic and electrical components, adopt quality fast coupling for hydraulic pipelines, which is converted quickly,  it can effectively solve the problem of oil leakage in the process of  assemblying and dismantling, and avoid the pollution of the environment. Safety and reliability

3 sections R type hydraulic boom, large circular arc, novel and beautiful appearance, compact structure, and the lightweight design of the boom, which reduced the weight of the whole machine..

Easy to transport and install.


Model

HG24

Delivery pipe dimension (outside diameter × thickness) (mm × mm

Φ133×4

Delivery hose dimension (inside diameter × length) (″×mm

5″×3000

Radius of placing boom (m)

24

Stationary height (to the joint between the end of the boom and Swivel table) (m)

7

Three hydraulic foldable arms

1st section

8.905m

2nd section

7.945m

3rd section

7.150m

Boom articulation

1st section

-4.2°+82.5°

2nd section

180°

3rd section

180°

Slewing range (°)

360

Power of motor (kW)

11

Pressure of hydraulic system (MPa)

20

Type of hydraulic oil

ESSO NUTO H46

Mode of operation

1. cable remote control

2. radio remote control

Power

380V/50Hz

wind speed

Placing concrete

≤60 km/h

working temperature

-2048℃
