HG38

Application:

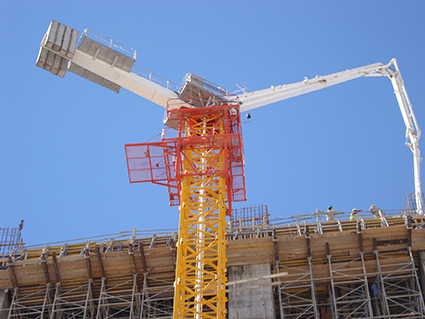

HG38 is designed for special structure construction. It can be anchored on structures and grows up with the structure like hot top-kit tower cran climbs.

HG38 ussually using on structures such as concrete/cement/aluminum silo, nuclear power plant, TV tower, etc.

Futures

-- Stepless speed control brought by proportional valve unit. Minimized impact force. Stable operation. Smooth starting and stopping. More accurate boom positioning.

-- Fast coupling connectors equipped at all detachable ends, automatically shut all outlets when assembling and disassembling.

-- Cable/radio remote control free operator from machine, get a better view of site, get a better control of boom and away from accidental injuries.

-- Hydraulci & electrical parts from Germany, Italy and Japan.


Model No.

HG38F/3

Delivery pipe dimension (mm)

Φ134×4

Hose Pipe (inside dia. x length) (mm)

5″×3000

Radius of placing boom (m)

38

Quntity of hydraulic foldable boom

3

Length of Booms (m)

1st boom

20.8

2nd boom

9.2

3rd boom

8.0

4th boom

Boom articulation °

1st boom

-4.2°~+82.5°

2nd boom

0°~180°

3rd boom

0°~180°

4th boom

0°~180°

Slewing range °

360

Power of motor (kW)

15

Pressure of hydraulic system (MPa)

31.5

Stationary height (m)

47.3

The max. anchoring height (m)

151

Foundation

Stationary type & traveling type

Spec. of tower section

Fixed type

1.8m×1.8m×2.8m

POTAIN type

2.0m×2.0m×3.0m

Climbing type

same as tower crane

Counter weight

Yes  (6.8t)

Remote Control

Cable & Radio

Speed control

stepless

Power  (V/Hz)

380/50

Wind speed (m/s)

Placing

≤13.8

Climbing

≤7.9

Working temperature ( ℃)

Normal

0~+40

Special

-40、+50
