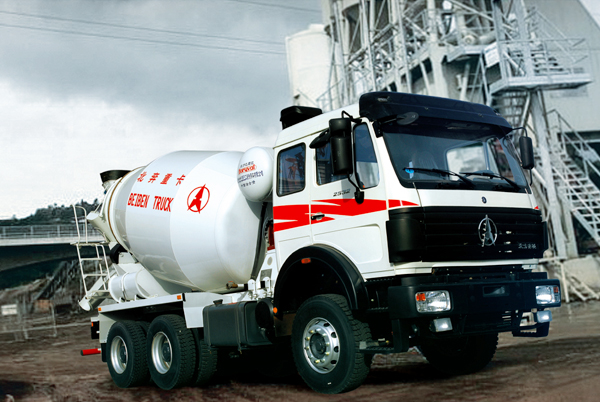

BEIBEN chassis 6X4 8m³ concrete truck mixer
REQUEST A QUOTE
- FEATURES
- PARAMETERS
NG80-BY：The overall designing of the vehicles is pleasing to the eyes. The brand new NG80B driving cab is created by the company. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, large mixing volume of tanks , all making it suitable for use in all kinds of construction sites.
| 2529BY /6×4/3450+1450/Short Cab/LHD | ||||||
| Dimension 尺寸 | 8840*2500*3840mm | |||||
| Approaching angle/Departure angle | 26/15° | |||||
| Overhang(front/rear) | 1410/2530mm | |||||
| Wheel base | 3450+1450mm | |||||
| Max speed | 80km/h | |||||
| Curb weight | 13350kg | |||||
| Loading capacity | 11520kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.290E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 213/2200 (kw/rpm) | |||||
| Max.torque | 1160/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 9JS135T-B, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer | |||||
| Gear ratio of gear box | 12.11/8.048/5.96/4.42/3.36/2.41/1.77/1.32/1.00 R: 12.66 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | NG80B short cabin; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver;With inner A/C | |||||
| Main technical parameters of concrete mixer | ||||||
| Drum performance parameter | Geometric Volume m3 | 13.1 m3 | ||||
| Effective Volume m3 | 8 m3 | |||||
| Filling Ratio % | 64.5% | |||||
| Gradient of the Drum ° | 15° | |||||
| Filling speed m3/min | ≥3 | |||||
| Discharging Speed m3/min | ≥2 | |||||
| Surplus Ration % | <1% | |||||
| Range of Slump mm | 20～300 | |||||
| Hydraulic System | Pump | Eaton 54 (ACA542337R) | ||||
| Motor | Eaton 54 (HHD542337R) | |||||
| Gear Box | PMB6sp | |||||
| Water supply system | Volume of water tank | 400L | ||||
| Water supply type | Air pressure Type | |||||
