Concrete truck mixer
Concrete truck mixer

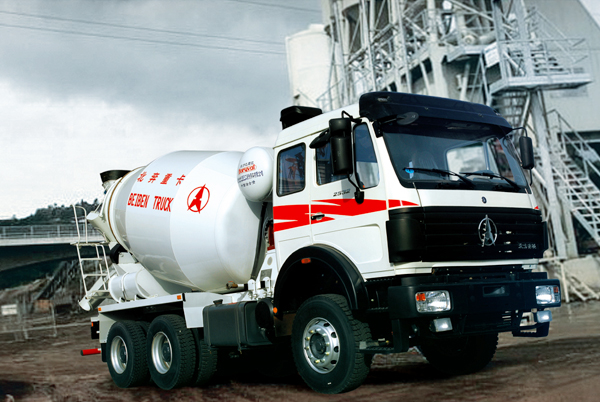

BEIBEN chassis 8X4 10m³ concrete truck mixer
REQUEST A QUOTE
- FEATURES
- PARAMETERS
NG80-BY：The overall designing of the vehicles is pleasing to the eyes. The brand new NG80B driving cab is created by the company. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, large mixing volume of tanks , all making it suitable for use in all kinds of construction sites.
| Overall dimension (mm) | 11080×2500×3900 | |||||
| Driving Model | 8x4 | |||||
| Wheel base (mm) | 1500+3550+1450 | |||||
| Curb weight （kg） | 16500 | |||||
| Engine Model | WD615.38，water-cooled，four strokes，6 cylinders straight in line，turbocharged | |||||
| Gearbox Model | 9T-180, mechanical type，9 Forward speed gear | |||||
| Frame | Based on Germany Benz Technology | |||||
| Axle(Front, Middle and Rear) | Based on Mercedes Benz Technology | |||||
| Brake system | Safe(consist of Service brake, Assistant brake and Park brake) | |||||
| Steering system Model | ZF8098 | |||||
| Fuel tanker capacity （L） | 400 | |||||
| Clutch Model | 430，Hydraulic boosting | |||||
| Tire | 12.00R20 radial tire | |||||
| Electrical system | 2 Batteries (12V/135Ah each ) | |||||
| Safe Cab(driver die Zero record) | full steel skeleton structure, covered with double layer steel plate; | |||||
| Upper body dimension(CBM) | 10 | |||||
