Concrete truck mixer

/Products/Concrete/Concrete truck mixer

Concrete truck mixer

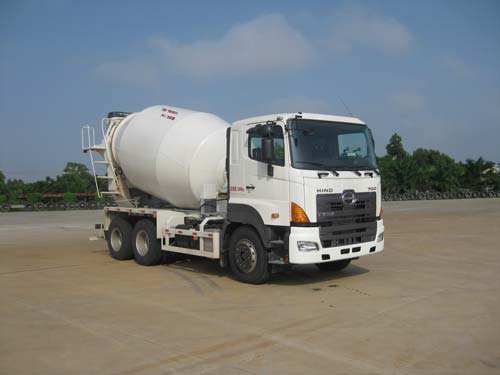

HINO chassis 8m³ concrete truck mixer

REQUEST A QUOTE

You have choose: Concrete truck mixer - HINO chassis 8m³ concrete truck mixer

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
HINO chassis 8m³ concrete truck mixer

Vehicle parameters

· Quality rating: 11970kg

· Kerb mass: 12900kg

· Total mass: 25000kg

· Vehicle length: 8380mm

· Vehicle width: 2500mm

· Vehicle height: 3740mm

· Front track: 2060mm

· Rear track: 1855/1855mm

· Front overhang: 1410mm

· Rear overhang: 2260mm

· Approach angle: 20°

· Departure angle: 17°

· Wheelbase: 3300+1410mm

Engine

· Engine type: Shanghai HINO P11C-UJ

· Maximum power: 254Kw

· Max speed: 2100rpm

· Maximum torque: 1460N.m

· Maximum torque speed: 1100rpm

· Maximum horsepower: 350 HP

· Displacement: 10520mL

· Fuel type: Diesel

· Emission standard: Three

Gearbox

· Gearbox type: Fast RTO-11509C

· Shift: Manual

· Forward bits: 9

· Reverse gear: 1

Chassis

· Chassis model: YC1250FS2PK

· Leaf spring: 10/14,11/14

· Front axle Description: 7000KG

· Description of the rear axle: 18000KG

Tyre

· Tire size: 10
