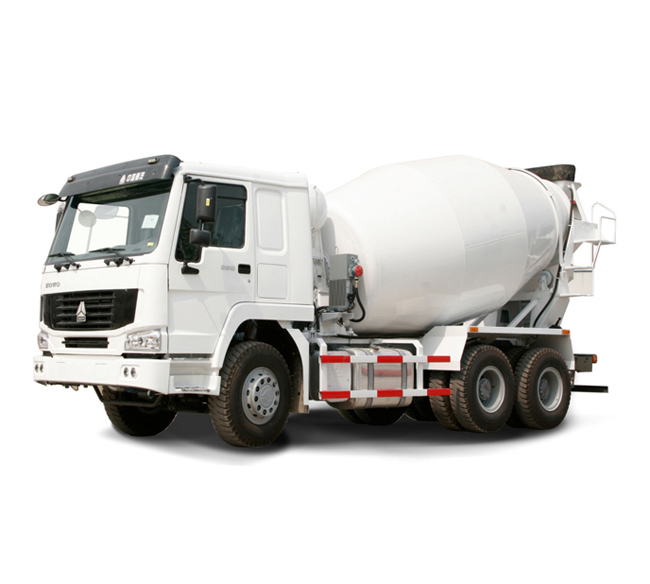

HOWO chassis 10m³ concrete truck mixer
REQUEST A QUOTE
- FEATURES
- PARAMETERS
Model | ZZ1257M3247W ZZ5257GJBN3247W ZZ5257GJBS3247W | ZZ5257GJBM3641W ZZ5257GJBN3641W | ZZ5257GJBM3841W ZZ5257GJBN3841W | |
Product code | 52576028 52576038 52576048 | 52576029 52576099 | 525760210 525760910 | |
Cubage(m3) | 8 | 9 | 10 | |
Cab | HW76 | HW76 | HW76 | |
Engine(Hp) | 290 336 371 | 290 336/371 | 290 336/371 | |
Power(Kw) | 213 247 273 | 213 247/273 | 213 247/273 | |
Transmission | HW15710/HW19710 | HW15710/HW19710 | HW15710/HW19710 | |
Front Axle | HF9 | HF9 | HF9 | |
Steering | ZF8098 | ZF8098 | ZF8098 | |
Rear Axles | HC16 | HC16 | HC16 | |
Wheels & Tyres | 8.5/12.00R20 | 8.5/12.00R20 | 8.5/12.00R20 | |
Dimensions(mm) | 8204x2496x3850 | 8715x2496x3850 | 9040x2496x3850 | |
Kerb weight (Kg) | 12800 | 13100 | 13220 | |
Wheel base(mm) | 3225+1350 | 3625+1350 | 3825+1350 | |
Engine | Model | WD615.87 | WD615.69 | WD615.47 |
Horsepower | 290 | 336 | 371 | |
Maximum output Kw/r/min | 213/2200 | 247/2200 | 273/2200 | |
Maximum torque N.m/r/min | 1160/1100-1600 | 1350/1300-1600 | 1460/1300-1600 | |
Type | 6-cylinder in line, 4-stroke, water-cooled turbo-charged & inter-cooled, direct injection | |||
Bore x Stroke | 126x130mm | |||
Valve | 2 | |||
Displacement | 9.726L | |||
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||
Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with electric-inlet-air heating System (180Ah battery) | ||||
Cab | SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments safety belts, exterior sun visor,stereo radio/cassette recorder,left driving air conditioner.Option: right driving; color | |||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
Transmission | SINOTRUK HW15710 or HW19710 transmission ,10 forward and 2 reverse Ratio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2) | |||
Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes Option: disc brake | |||
Steering | German ZF8098 Steering Gear Box ,hydraulic steering with power assistance Ratio:22.2-26.2 | |||
Rear Axles | HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |||
Brake System | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake | |||
Wheels & Tyres | Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire Option:12.00R20 radial tyre | |||
Electrics | Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light Option:2x180Ah Batteries | |||
Oil Tank | Square type-300L Aluminum alloy fuel tank | |||
Other Optional | Vertical Muffler;ABS;Automatic Break Clearance Adjusting Arm;Traveling Data Recorder;Under Starting/Stopping Device;Metal Pipeline;Engine Protective Board | |||
Delivery date | Within 45 days after receipt advance | |||
Weight in kg | Gross vehicle weight 25000 Front axle loading capacity 9000 Rear axles loading capacity 2x16000 | |||
Performance | Maximum drving speed (km/h) 75 Fuel consumption (1/100 km) 38 | |||
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |||
