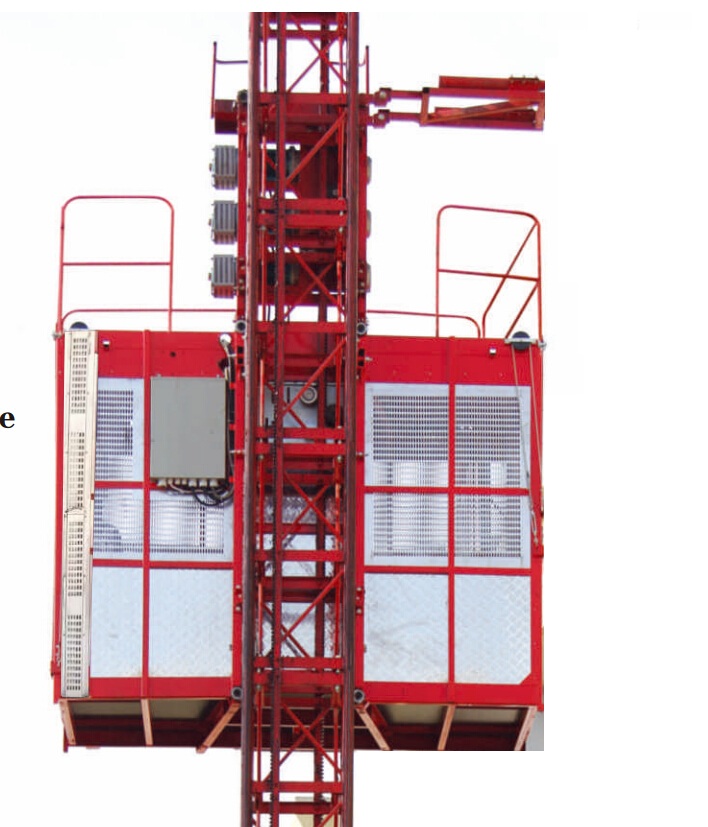

Construction hoist

Construction hoist

SC120/120D

REQUEST A QUOTE

You have choose: Construction hoist - SC120/120D

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
SC120/120D

Main technical data

Unit

Value

Rated load

kg

2x1200

Rated erection load

kg

2x1000

Jib attachment rated load

kg

300

Cage size(LxWxH)

m

3.0x1.3x2.5

Maximum lifting height

m

250

Lifting speed

m/min

0-45

Rated output

kW

2x2x 16.5

Voltage rating

V

380/440

Rated    frequency

Hz

50/60

Rated current

A

2x2x34.4

Power supply fuses

A

2x96

Protective class

/

I P55

Load duration factor

/

FC-25%

Safety device

m/s

1.2

Enclosure weight

kg

1480

Cage weight

kg

2x1800

Counterweight

kg

/

Mast section weight

kg

150/170

Mast section length

mm

1508
