Construction hoist
Construction hoist

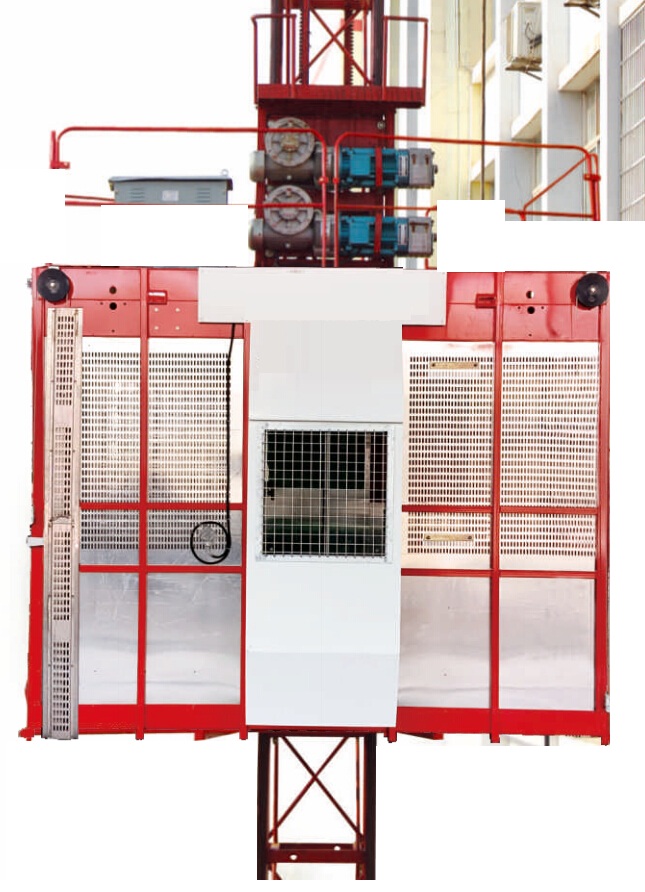

SC120/120Z
REQUEST A QUOTE
- FEATURES
- PARAMETERS
Main technical data | Unit | Value |
Rated load | kg | 2x1200 |
Rated erection load | kg | 2x1000 |
Jib attachment rated load | kg | 300 |
Cage size(LxWxH) | m | 3.0x1.3x2.5 |
Maximum lifting height | m | 250 |
Lifting speed | m/min | 0-63 |
Rated output | kw | 2x3x15 |
Voltage rating | V | 380/440 |
Rated frequency | Hz | 50/60 |
Rated current | A | 2x3x32.2 |
Power supply fuses | A | 2x125 |
Protective class | / | IP55 |
Load duration factor | / | FC-25% |
Safety device | m/s | 1.4 |
Enc10sure weight | kg | 1480 |
Cage weight | kg | 2x2000 |
Counterweight | kg | / |
Mast section weight | kg | 150/170/190 |
Mast section length | mm | 1508 |
