Container asphalt mixing plant
Container asphalt mixing plant

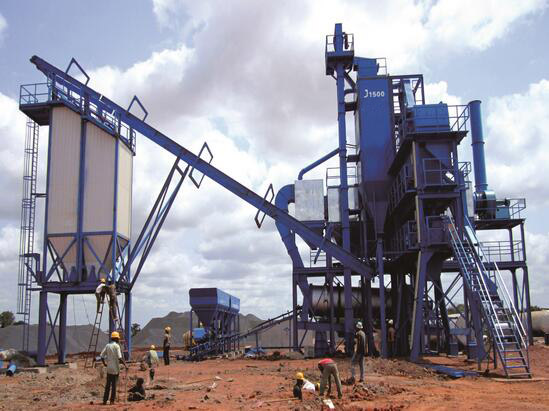

J1500
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Technical Parameter | J1500 | |
|---|---|---|
| Production Capacity (t/h) | 90-120 | |
| Mixer Capacity (kg) | 1500 | |
| Measuring Accuracy | Aggregate | ±0.3% |
| Filler | ±0.2% | |
| Bitumen | ±0.1% | |
| Temperature Control Accuracy (℃） | ≦±5 | |
| Dust Collecting Efficiency (mg/Nm³) | ≦20 | |
| Total Power (kw) | 360 | |
| Cold Feeder | Length*Width (m) | 3*2.15 |
| Hopper Capacity (m³) | 7.3 | |
| Collecting Belt | Width (mm) | 500 |
| Power (kw) | 5.5 | |
| Drying Drum | Diameter*Length (m) | 1.8*6.5 |
| Power (kw) | 4*11 | |
| Vibrating Screen | Length*Width (m) | 4.6*1.9 |
| Power (kw) | 2*5.5 | |
| Scale Hopper Capacity | Aggregate (kg) | 1500 |
| Filler (kg) | 225 | |
| Bitumen (kg) | 225 | |
| Mixer | Capacity (kg) | 1500 |
| Power (kw) | 45 | |
