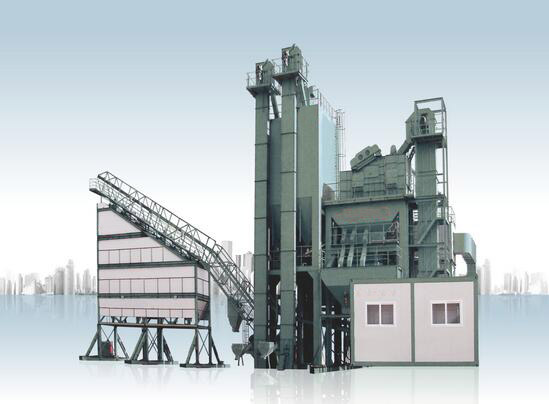

Container asphalt mixing plant
Container asphalt mixing plant
J3000
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Technical Parameter | J3000 | |
|---|---|---|
| Production Capacity (t/h) | 200-240 | |
| Mixer Capacity (kg) | 3000 | |
| Measuring Accuracy | Aggregate | ±0.3% |
| Filler | ±0.2% | |
| Bitumen | ±0.1% | |
| Temperature Control Accuracy (℃） | ≦±5 | |
| Dust Collecting Efficiency (mg/Nm³) | ≦20 | |
| Total Power (kw) | 682 | |
| Cold Feeder | Length*Width (m) | 3.2*2.5 |
| Hopper Capacity (m³) | 10 | |
| Collecting Belt | Width (mm) | 650 |
| Power (kw) | 5.5 | |
| Drying Drum | Diameter*Length (m) | 2.5*9.5 |
| Power (kw) | 4*22 | |
| Vibrating Screen | Length*Width (m) | 5.4*3 |
| Power (kw) | 2*15 | |
| Scale Hopper Capacity | Aggregate (kg) | 3500 |
| Filler (kg) | 450 | |
| Bitumen (kg) | 480 | |
| Mixer | Capacity (kg) | 3000 |
| Power (kw) | 2*37 | |
